TaeguTec Cutting Tools - Metal Working Tools - Turning -

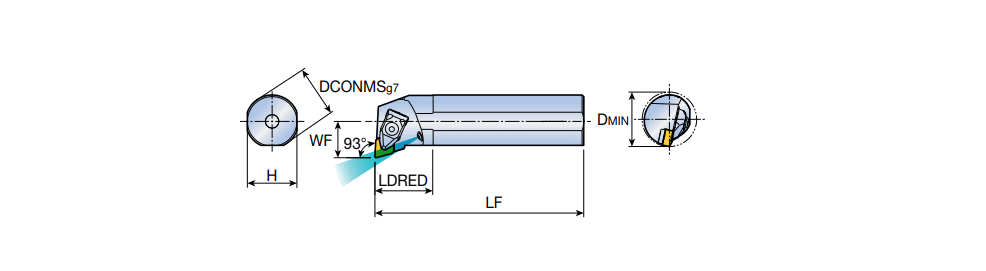

A-TXUNR/L (RHINO-X) : T-holder RHINOXTURN boring bars with internal coolant, 93° approach angle & 70° corner angle XNMG inserts

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	IC	S	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID	LTA	IIC	IIC_2	GICAT	GIREM	giic	GICODE
A32S TXUNL 1105	32.00	30.0	250.00	35.0	22.00	40.00	11.11~	5.56~	15~	93.0~	T-HOLDER-RX ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	XNMG 110508 MLP	45.00~	IS$$23154203-976 ~	IS$$919688921591508 ~	6177395		0
A32S TXUNR 1105	32.00	30.0	250.00	35.0	22.00	40.00	11.11~	5.56~	15~	93.0~	T-HOLDER-RX ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	XNMG 110508 MLP	45.00~	IS$$231542052801000 ~	IS$$919688921591508 ~	6177394		0
