4WHU 12-ML : Precisely ground wiper inserts with 4 cutting edges for super-finishing of steels and cast irons

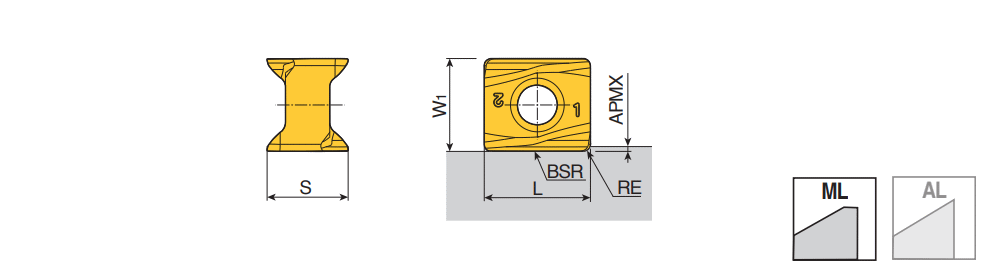

Designation	L	W1	RE	S	APMX	BSR	S1	CEDC	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
4WHU 1207-ML	12.00	10.50	0.80	9.08	0.50	1000.00	12.00~	4~	C4F-4W12 ~	0.250	0.100	0.25	0.50	~	71DD68D91938A ~	G30 ~	ML ~	CT7000~	IS$$239269456716885 ~	4WHU 12 ~	0~	6320038		4		TT9080 CT7000 TT6080 TT2510
