TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

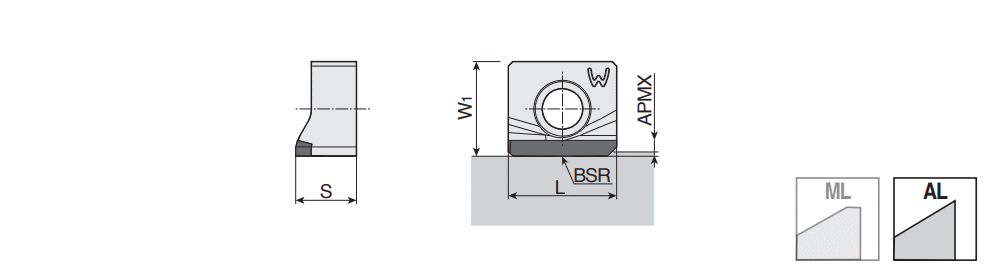

4WHU 12-AL : Precisely ground & polished wiper inserts with 4 cutting edges for super-finishing of aluminum & non-ferrous material

Designation	L	W1	BSR	RE	S	APMX	S1	CEDC	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
4WHU 1207-AL	12.00	10.50	1000.00	0.80	9.08	0.50	12.00~	4~	C4F-4W12 ~	0.250	0.100	0.25	0.50	~	71DD68D91938A ~	G10 ~	AL ~	K10 ~	IS$$239269456716885 ~	4WHU 12 ~	0~	6312361		1		K10
