Home Page > Milling & Solid End mills > > 4WHU 12-CBN

Milling & Solid End mills
Main Application

Related Tool

4WHU 12-CBN : Precisely ground CBN wiper inserts for super-finishing of hardened steels and hard cast irons

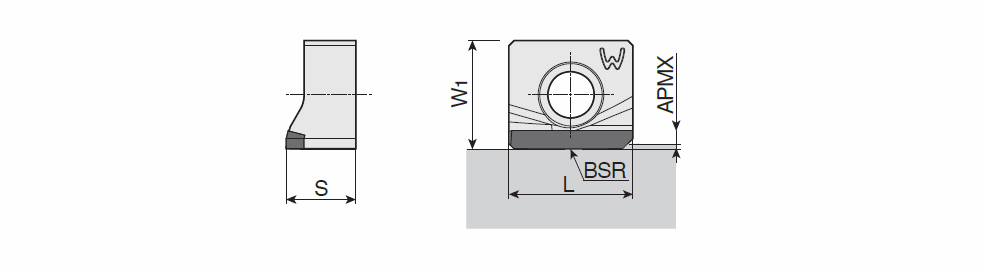

Designation	L	W1	S	APMX	BSR	S1	CEDC	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID	ESP	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
4WHU 1207-CBN	12.00	10.63	6.71	0.50	1000.00	12.00~	1~	C4F-4W12 ~	0.250	0.100	0.25	0.50	~	71DD68D91938A ~	B40 ~	TB7015~	IS$$239269456716885 ~	4WHU 12 ~	0~	6211536		1		TB7015
