12D-TF45-R-06 : 45° Face mills with reinforced 12 cutting edges inserts of high positive angle for general milling in max. depth of cut ap 3.0 mm

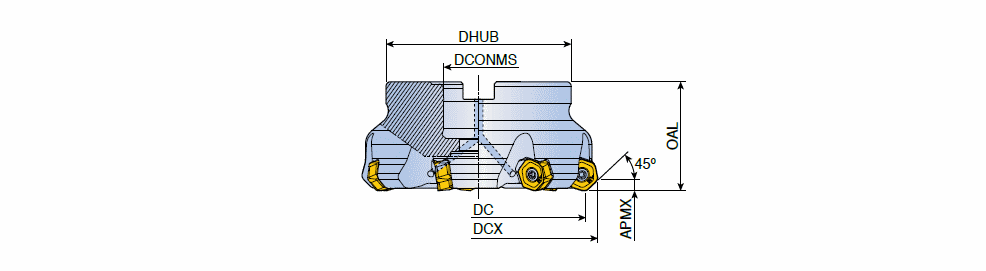

Designation	Tool sty	DC	CICT	DCX	DCONMS	DHUB	OAL	APMX		Arbor		Mtg. Ref	S1	Rd	KAPR	R/L	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
12D-TF45-450-22R-06	FACE MILL ~	50.00	4	60.80	22.00	45.00	40.00	3.00	O	A	0.50	LH M10x25	6.00~	0.00~	45.0~	~	RC ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	IS$$477445973327856 ~	40.00~	4~	4~	4~	6307704
12D-TF45-650-22R-06	FACE MILL ~	50.00	6	60.80	22.00	45.00	40.00	3.00	O	A	0.50	LH M10x25	6.00~	0.00~	45.0~	~	RF ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	IS$$477445973327856 ~	40.00~	6~	6~	6~	6307705
12D-TF45-563-22R-06	FACE MILL ~	63.00	5	73.80	22.00	47.00	40.00	3.00	O	A	0.70	LH M10x25	6.00~	0.00~	45.0~	~	RC ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	IS$$477445973327856 ~	40.00~	5~	5~	5~	6307706
12D-TF45-763-22R-06	FACE MILL ~	63.00	7	73.80	22.00	47.00	40.00	3.00	O	A	0.70	LH M10x25	6.00~	0.00~	45.0~	~	RF ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	IS$$477445973327856 ~	40.00~	7~	7~	7~	6307707
12D-TF45-1080-27R-06	FACE MILL ~	80.00	10	90.80	27.00	70.00	50.00	3.00	O	A	1.50	SH M12x35	6.00~	0.00~	45.0~	~	F ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	IS$$477445973327856 ~	50.00~	10~	10~	10~	6307709
12D-TF45-480-27R-06	FACE MILL ~	80.00	4	4.00	27.00	70.00	50.00	3.00	O	A	1.40	SH M12X35	6.00~	0.00~	45.0~	~	C ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	~	50.00~	90~	90~	90~	6273729
12D-TF45-680-27R-06	FACE MILL ~	80.00	6	90.80	27.00	70.00	50.00	3.00	O	A	1.50	SH M12x35	6.00~	0.00~	45.0~	~	RC ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	IS$$477445973327856 ~	50.00~	6~	6~	6~	6307708
12D-TF45-12100-32R-06	FACE MILL ~	100.00	12	110.80	32.00	85.00	50.00	3.00	O	A	2.20	SH M16x35	6.00~	0.00~	45.0~	~	F ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	IS$$477445973327856 ~	50.00~	12~	12~	12~	6307711
12D-TF45-5100-32R-06	FACE MILL ~	100.00	5	5.00	32.00	85.00	50.00	3.00	O	A	2.00	LH M16X35	6.00~	0.00~	45.0~	~	C ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	~	50.00~	110~	110~	110~	6273730
12D-TF45-7100-32R-06	FACE MILL ~	100.00	7	110.80	32.00	85.00	50.00	3.00	O	A	2.20	LH M16x35	6.00~	0.00~	45.0~	~	RC ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	IS$$477445973327856 ~	50.00~	7~	7~	7~	6307710
12D-TF45-10125-40R-06	FACE MILL ~	125.00	10	135.80	40.00	85.00	63.00	3.00	O	A	3.60	SH M20x40	6.00~	0.00~	45.0~	~	RF ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	IS$$477445973327856 ~	63.00~	10~	10~	10~	6307712
12D-TF45-16125-40R-06	FACE MILL ~	125.00	16	135.80	40.00	85.00	63.00	3.00	O	A	3.60	SH M20x40	6.00~	0.00~	45.0~	~	F ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	IS$$477445973327856 ~	63.00~	16~	16~	16~	6307713
12D-TF45-6125-40R-06	FACE MILL ~	125.00	6	6.00	40.00	85.00	63.00	3.00	O	A	3.50	SH M20X40	6.00~	0.00~	45.0~	~	C ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	~	63.00~	135~	135~	135~	6273731
12D-TF45-12160-40R-06	FACE MILL ~	160.00	12	170.80	40.00	110.00	63.00	3.00	X	C	4.90	-	6.00~	0.00~	45.0~	~	RF ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	SPK ~	02 ~	IS$$477445973327856 ~	63.00~	12~	12~	12~	6307714
12D-TF45-20160-40R-06	FACE MILL ~	160.00	20	170.80	40.00	110.00	63.00	3.00	X	C	4.90	-	6.00~	0.00~	45.0~	~	XF ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	SPK ~	02 ~	IS$$477445973327856 ~	63.00~	20~	20~	20~	6307715
12D-TF45-8160-40R-06	FACE MILL ~	160.00	8	8.00	40.00	110.00	63.00	3.00	X	C	4.70	-	6.00~	0.00~	45.0~	~	C ~	C12M-HX06 ~	71E01A05B627B ~	HXKU 0605 ANR-M	FDA ~	02 ~	~	63.00~	170~	170~	170~	6273732
