TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

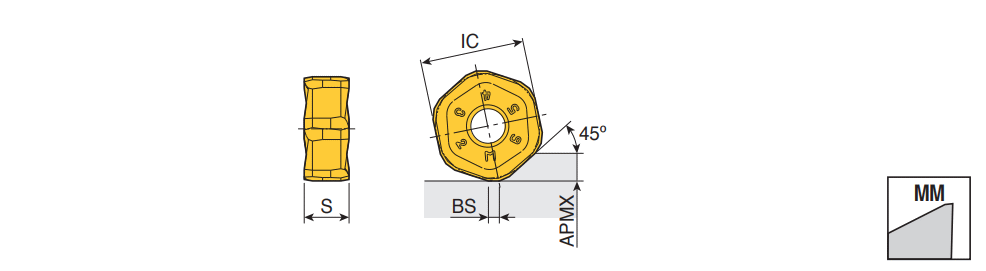

HXHU 06 ANR-MM : Ground double-sided inserts of economical 12 cutting edges for cast iron machining in max. depth of cut ap 3.0 mm

Designation	IC	S	APMX	BS	S1	CEDC	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
HXHU 0605 ANR-MM	14.00	6.80	3.00	1.30	6.00~	12~	C12M-HX06 ~	0.250	0.100	1.00	3.00	M8 ~	71DD68D7A8E5F ~	G50 ~	MM ~	TT6080~	IS$$477445973327856 ~	HXHU 06 ~	0~	6319687		2		TT9080 TT6080
