TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

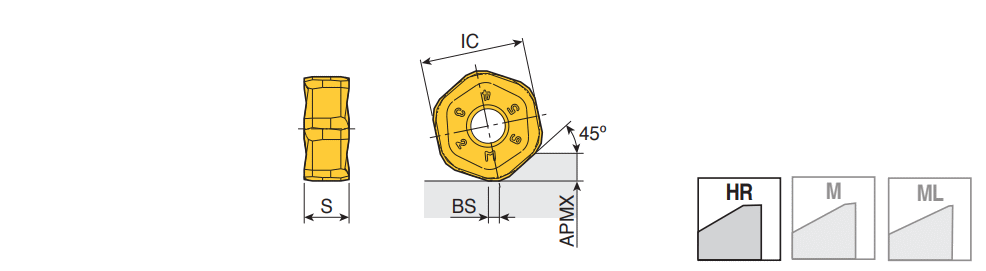

HXKU 10 ANR-HR : Double-sided inserts of Economical 12 cutting edges for heavy roughing in steel and cast iron in maximum depth of cut ap 5.0 mm

Designation	IC	S	APMX	BS	S1	CEDC	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
HXKU 1007 ANR-HR	19.05	8.30	5.00	1.00	10.00~	12~	C12M-HX10 ~	0.600	0.100	2.00	5.00	M10 ~	71DD68D7A8E5F ~	U80 ~	HR ~	8525B ~	IS$$626778030749675 ~	HXKU 10 ~	0~	6326075		2		TT8525B TT7515
