MXEE(D)-04 : Interchangeable Solid carbide flat type end mill heads with 4 flute & various corner radii for general purpose

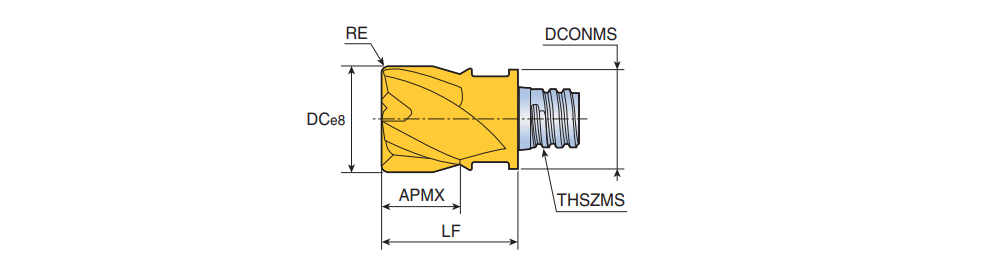

Designation	Tool sty	DC	RE	FHA	APMX	LF	THSZMS	DCONMS	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXEE050L04R05-04S04	HEAD TYPE ~	5.00	0.50	45.0	4.00	8.50	S04	6.00	5.00~	0.020	0.060	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	8.50~	8.50~	4~	4~	6254456	1	TT5523
MXEE050L07R00-04S05	HEAD TYPE ~	5.00	-	45.0	7.00	15.00	S05	8.00	5.00~	0.020	0.060	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	15.00~	15.00~	4~	4~	6254457	1	TT5523
MXEE060L04R05-04S04	HEAD TYPE ~	6.00	0.50	45.0	4.00	8.50	S04	5.80	5.00~	0.020	0.040	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	8.50~	8.50~	4~	4~	6254458	1	TT5523
MXEE060L05R00-04S05	HEAD TYPE ~	6.00	-	45.0	5.00	10.00	S05	8.00	5.00~	0.030	0.040	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	4~	4~	6191731	1	TT5523
MXED080L05R05-04S05	HEAD TYPE ~	8.00	0.50	30.0	5.00	10.00	S05	7.70	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	4~	4~	6191733	1	TT5523
MXED080L05R10-04S05	HEAD TYPE ~	8.00	1.00	30.0	5.00	10.00	S05	7.70	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	4~	4~	6191734	1	TT5523
MXED080L05R15-04S05	HEAD TYPE ~	8.00	1.50	30.0	5.00	10.00	S05	7.70	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	4~	4~	6191735	1	TT5523
MXED080L09R05-04S05	HEAD TYPE ~	8.00	0.50	45.0	9.00	15.00	S05	7.70	0.00~	0.030	0.090	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	15.00~	15.00~	4~	4~	6254459	1	TT5523
MXEE080L05R00-04S05	HEAD TYPE ~	8.00	-	45.0	5.00	10.00	S05	7.70	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	4~	4~	6191732	1	TT5523
MXEE080L05R05-04S05	HEAD TYPE ~	8.00	0.50	45.0	5.00	10.00	S05	7.70	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	4~	4~	6254460	1	TT5523
MXEE080L05R10-04S05	HEAD TYPE ~	8.00	1.00	45.0	5.00	10.00	S05	7.70	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	4~	4~	6254461	1	TT5523
MXEE080L09R00-04S05	HEAD TYPE ~	8.00	-	45.0	9.00	15.00	S05	7.70	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	15.00~	15.00~	4~	4~	6254462	1	TT5523
MXED100L07R05-04S06	HEAD TYPE ~	10.00	0.50	30.0	7.00	13.00	S06	9.60	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	4~	4~	6191737	1	TT5523
MXED100L07R10-04S06	HEAD TYPE ~	10.00	1.00	30.0	7.00	13.00	S06	9.60	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	4~	4~	6191739	1	TT5523
MXEE100L07R00-04S06	HEAD TYPE ~	10.00	-	45.0	7.00	13.00	S06	9.60	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	4~	4~	6191736	1	TT5523
MXEE100L07R05-04S06	HEAD TYPE ~	10.00	0.50	45.0	7.00	13.00	S06	9.60	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	4~	4~	6191738	1	TT5523
MXEE100L07R10-04S06	HEAD TYPE ~	10.00	1.00	45.0	7.00	13.00	S06	9.60	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	4~	4~	6191740	1	TT5523
MXEE100L12R00-04S06	HEAD TYPE ~	10.00	-	45.0	12.00	19.00	S06	9.60	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	19.00~	19.00~	4~	4~	6254463	1	TT5523
MXED120L09R05-04S08	HEAD TYPE ~	12.00	0.50	30.0	9.00	16.50	S08	11.70	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	4~	4~	6191742	1	TT5523
MXED120L09R10-04S08	HEAD TYPE ~	12.00	1.00	30.0	9.00	16.50	S08	11.70	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	4~	4~	6191744	1	TT5523
MXEE120L09R00-04S08	HEAD TYPE ~	12.00	-	45.0	9.00	16.50	S08	11.70	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	4~	4~	6191741	1	TT5523
MXEE120L09R05-04S08	HEAD TYPE ~	12.00	0.50	45.0	9.00	16.50	S08	11.70	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	4~	4~	6191743	1	TT5523
MXEE120L09R10-04S08	HEAD TYPE ~	12.00	1.00	45.0	9.00	16.50	S08	11.70	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	4~	4~	6191745	1	TT5523
MXEE120L14R00-04S08	HEAD TYPE ~	12.00	-	45.0	14.00	23.00	S08	11.70	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	23.00~	23.00~	4~	4~	6254464	1	TT5523
MXED160L12R05-04S10	HEAD TYPE ~	16.00	0.50	30.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191747	1	TT5523
MXED160L12R10-04S10	HEAD TYPE ~	16.00	1.00	30.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191749	1	TT5523
MXED160L12R15-04S10	HEAD TYPE ~	16.00	1.50	30.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191751	1	TT5523
MXED160L12R20-04S10	HEAD TYPE ~	16.00	2.00	30.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191753	1	TT5523
MXED160L12R30-04S10	HEAD TYPE ~	16.00	3.00	30.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6254465	1	TT5523
MXED160L12R40-04S10	HEAD TYPE ~	16.00	4.00	30.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6254466	1	TT5523
MXEE160L12R00-04S10	HEAD TYPE ~	16.00	-	45.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191746	1	TT5523
MXEE160L12R05-04S10	HEAD TYPE ~	16.00	0.50	45.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191748	1	TT5523
MXEE160L12R10-04S10	HEAD TYPE ~	16.00	1.00	45.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191750	1	TT5523
MXEE160L12R15-04S10	HEAD TYPE ~	16.00	1.50	45.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191752	1	TT5523
MXEE160L12R20-04S10	HEAD TYPE ~	16.00	2.00	45.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191754	1	TT5523
MXEE160L12R30-04S10	HEAD TYPE ~	16.00	3.00	45.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191755	1	TT5523
MXEE160L12R40-04S10	HEAD TYPE ~	16.00	4.00	45.0	12.00	20.50	S10	15.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191756	1	TT5523
MXED200L15R05-04S12	HEAD TYPE ~	20.00	0.50	30.0	15.00	25.50	S12	18.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	25.50~	25.50~	4~	4~	6191758	1	TT5523
MXED200L15R10-04S12	HEAD TYPE ~	20.00	1.00	30.0	15.00	25.50	S12	18.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	25.50~	25.50~	4~	4~	6191759	1	TT5523
MXED200L15R20-04S12	HEAD TYPE ~	20.00	2.00	30.0	15.00	25.50	S12	18.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	25.50~	25.50~	4~	4~	6191760	1	TT5523
MXED200L15R30-04S12	HEAD TYPE ~	20.00	3.00	30.0	15.00	25.50	S12	18.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	25.50~	25.50~	4~	4~	6191761	1	TT5523
MXEE200L15R00-04S12	HEAD TYPE ~	20.00	-	45.0	15.00	25.50	S12	18.30	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	25.50~	25.50~	4~	4~	6191757	1	TT5523

Wrench should be ordered separately
