TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

MXEE-03 (H.A 38, keyways) : Interchangeable solid carbide flat type end mill heads with 3 flute for keyways

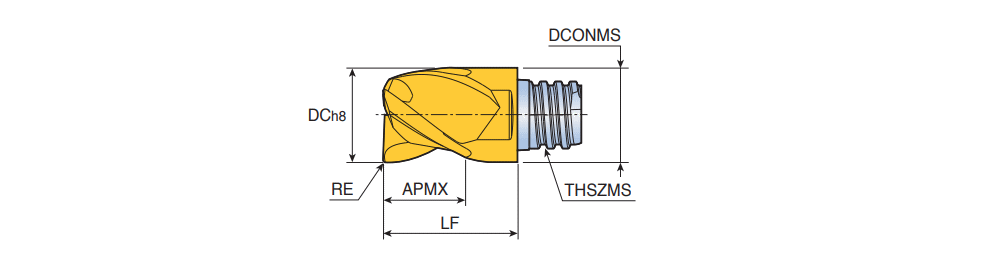

Designation	Tool sty	DC	RE	APMX	THSZMS	DCONMS	LF	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXEE077L04R02-03S05	HEAD TYPE ~	7.70	0.20	4.00	S05	7.70	10.00	38.0~	5.00~	0.030	0.080	3~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	3~	3~	6191762	1	TT5523
MXEE097L05R03-03S06	HEAD TYPE ~	9.70	0.30	5.00	S06	9.70	13.00	38.0~	5.00~	0.035	0.090	3~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	3~	3~	6191763	1	TT5523
MXEE117L07R03-03S08	HEAD TYPE ~	11.70	0.30	7.00	S08	11.70	16.50	38.0~	5.00~	0.035	0.110	3~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	3~	3~	6191764	1	TT5523
MXEE157L08R03-03S10	HEAD TYPE ~	15.70	0.30	8.00	S10	15.30	20.50	38.0~	5.00~	0.040	0.130	3~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	3~	3~	6191765	1	TT5523
MXEE197L12R04-03S12	HEAD TYPE ~	19.70	0.40	12.00	S12	18.30	25.50	38.0~	5.00~	0.050	0.150	3~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	25.50~	25.50~	3~	3~	6191766	1	TT5523

Wrench should be ordered separately
