TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

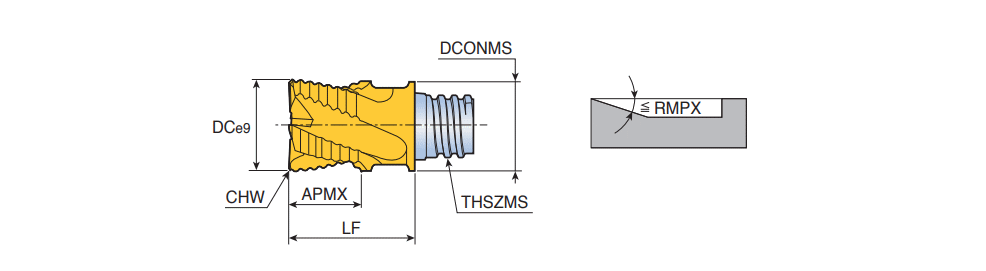

MXEE-R : Interchangeable solid carbide flat type roughing end mill heads with serrated cutting edges & 4-6 flutes

Designation	Tool sty	NOF	DC	CHW	APMX	THSZMS	DCONMS	LF	RMPX	H.A	Rd	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXEE080L05C25R04S05	HEAD TYPE ~	4	8.00	0.25	5.00	S05	7.70	10.00	90.00	45.0~	5.00~	0.030	0.080	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	4~	4~	6191780	1	TT5523
MXEE100L07C30R04S06	HEAD TYPE ~	4	10.00	0.30	7.00	S06	9.70	13.00	90.00	45.0~	5.00~	0.035	0.090	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	4~	4~	6191781	1	TT5523
MXEE120L09C35R04S08	HEAD TYPE ~	4	12.00	0.35	9.00	S08	11.70	16.50	90.00	45.0~	5.00~	0.035	0.110	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	4~	4~	6191782	1	TT5523
MXEE160L12C40R05S10	HEAD TYPE ~	5	16.00	0.40	12.00	S10	15.30	20.50	7.00	45.0~	5.00~	0.040	0.130	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	5~	5~	6191783	1	TT5523
MXEE200L15C40R06S12	HEAD TYPE ~	6	20.00	0.40	15.00	S12	18.30	25.50	3.00	45.0~	5.00~	0.050	0.150	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	25.50~	25.50~	6~	6~	6191784	1	TT5523
MXEE250L22C50R06S15	HEAD TYPE ~	6	25.00	0.50	22.00	S15	23.90	37.00	3.00	45.0~	5.00~	0.060	0.170	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	37.00~	37.00~	6~	6~	6191785	1	TT5523

Wrench should be ordered separately
