TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

MXEE-C04 : Interchangeable solid carbide flat type end mill heads with 4 flute of alternated serrated roughing & normal finishing cutting edges

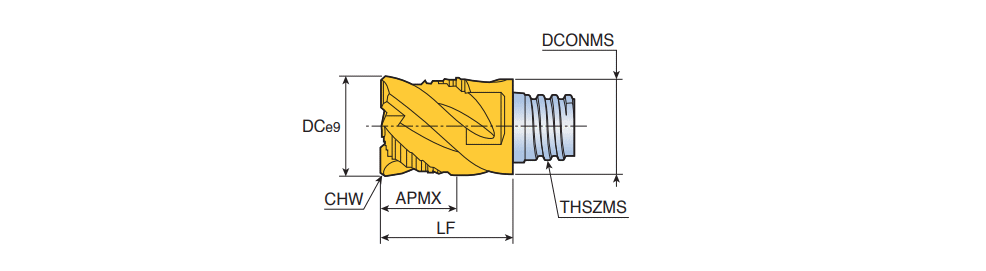

Designation	Tool sty	DC	CHW	APMX	THSZMS	DCONMS	LF	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXEE080L05C30C04S05	HEAD TYPE ~	8.00	0.30	5.00	S05	7.70	10.00	45.0~	5.00~	0.030	0.080	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	4~	4~	6191786	1	TT5523
MXEE100L07C30C04S06	HEAD TYPE ~	10.00	0.30	7.00	S06	9.70	13.00	45.0~	5.00~	0.035	0.090	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	4~	4~	6191787	1	TT5523
MXEE120L09C40C04S08	HEAD TYPE ~	12.00	0.40	9.00	S08	11.70	16.50	45.0~	5.00~	0.035	0.110	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	4~	4~	6191788	1	TT5523
MXEE160L12C60C04S10	HEAD TYPE ~	16.00	0.60	12.00	S10	15.30	20.50	45.0~	5.00~	0.040	0.130	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	20.50~	20.50~	4~	4~	6191789	1	TT5523
MXEE200L15C60C04S12	HEAD TYPE ~	20.00	0.60	15.00	S12	18.30	25.50	45.0~	5.00~	0.050	0.150	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	25.50~	25.50~	4~	4~	6191790	1	TT5523
MXEE250L22C60C04S15	HEAD TYPE ~	25.00	0.60	22.00	S15	23.90	37.00	45.0~	5.00~	0.060	0.170	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	37.00~	37.00~	4~	4~	6191791	1	TT5523

Wrench should be ordered separately
