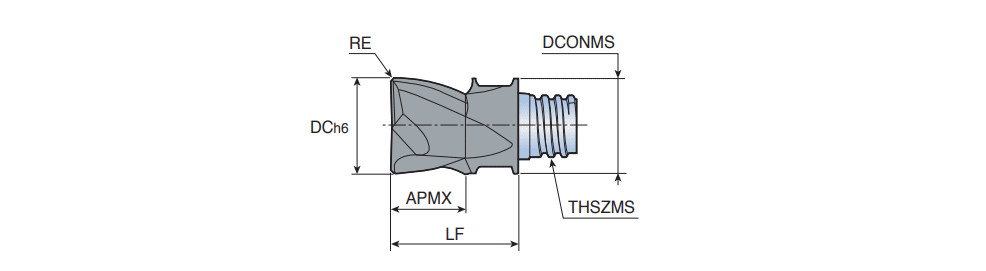

MXEE-A02 : Interchangeable solid carbide flat type end mill heads with 2 flute & various corner radii for Aluminum machining

Designation	Tool sty	DC	RE	APMX	THSZMS	DCONMS	LF	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
MXEE100L07R05A02S06	HEAD TYPE ~	10.00	0.50	7.00	S06	9.70	13.00	45.0~	5.00~	0.350	0.090	2~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	13.00~	13.00~	2~	2~	6859383	2	TTA101 UF10
MXEE100L07R10A02S06	HEAD TYPE ~	10.00	1.00	7.00	S06	9.70	13.00	45.0~	5.00~	0.350	0.090	2~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	13.00~	13.00~	2~	2~	6859418	2	TTA101 UF10
MXEE120L09R05A02S08	HEAD TYPE ~	12.00	0.50	9.00	S08	11.70	16.50	45.0~	5.00~	0.350	0.110	2~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	16.50~	16.50~	2~	2~	6859453	2	TTA101 UF10

-Wrench should be ordered separately
-TTA101 grade : ta-C coating
