MXEE-A03 : Interchangeable solid carbide flat type end mill heads with 3 flute & various corner radii for Aluminum machining

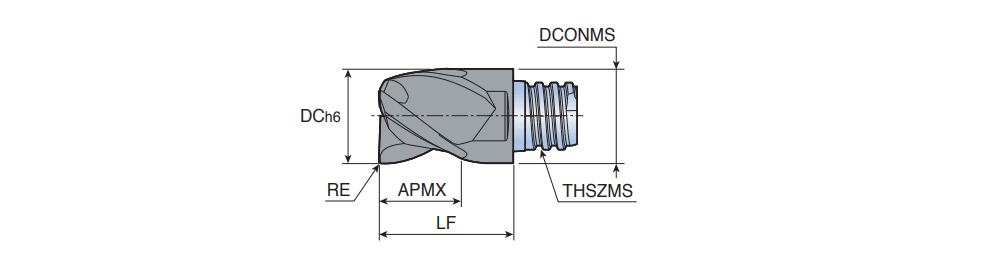

Designation	Tool sty	DC	RE	APMX	THSZMS	DCONMS	LF	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
MXEE080L05R05A03S05	HEAD TYPE ~	8.00	0.50	5.00	S05	7.70	10.00	45.0~	0.00~	0.030	0.080	3~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	10.00~	10.00~	3~	3~	6859287	2	TTA101 UF10
MXEE100L06R05A03S06	HEAD TYPE ~	10.00	0.50	6.00	S06	9.70	13.00	45.0~	5.00~	0.035	0.090	3~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	13.00~	13.00~	3~	3~	6859317	2	TTA101 UF10
MXEE100L06R10A03S06	HEAD TYPE ~	10.00	1.00	6.00	S06	9.70	13.00	45.0~	0.00~	0.035	0.090	3~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	13.00~	13.00~	3~	3~	6859275	2	TTA101 UF10
MXEE120L08R05A03S08	HEAD TYPE ~	12.00	0.50	8.00	S08	11.70	16.50	45.0~	0.00~	0.035	0.110	3~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	16.50~	16.50~	3~	3~	6859289	2	TTA101 UF10
MXEE120L08R10A03S08	HEAD TYPE ~	12.00	1.00	8.00	S08	11.70	16.50	45.0~	0.00~	0.035	0.110	3~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	16.50~	16.50~	3~	3~	6859499	2	TTA101 UF10
MXEE160L10R00A03S10	HEAD TYPE ~	16.00	-	10.00	S10	15.30	20.50	45.0~	0.00~	0.040	0.130	3~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	20.50~	20.50~	3~	3~	6859474	2	TTA101 UF10
MXEE160L10R10A03S10	HEAD TYPE ~	16.00	1.00	10.00	S10	15.30	20.50	45.0~	0.00~	0.040	0.130	3~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	20.50~	20.50~	3~	3~	6859387	2	TTA101 UF10
MXEE160L10R20A03S10	HEAD TYPE ~	16.00	2.00	10.00	S10	15.30	20.50	45.0~	0.00~	0.040	0.130	3~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	20.50~	20.50~	3~	3~	6859292	2	TTA101 UF10
MXEE200L12R05A03S12	HEAD TYPE ~	20.00	0.50	12.00	S12	18.30	25.50	45.0~	5.00~	0.050	0.150	3~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	25.50~	25.50~	3~	3~	6859476	2	TTA101 UF10
MXEE200L12R10A03S12	HEAD TYPE ~	20.00	1.00	12.00	S12	18.30	25.50	45.0~	0.00~	0.050	0.150	3~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	25.50~	25.50~	3~	3~	6859365	2	TTA101 UF10
MXEE200L12R20A03S12	HEAD TYPE ~	20.00	2.00	12.00	S12	18.30	25.50	45.0~	0.00~	0.050	0.150	3~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-02 ~	25.50~	25.50~	3~	3~	6859477	2	TTA101 UF10

-Wrench should be ordered separately
-TTA101 grade : ta-C coating
