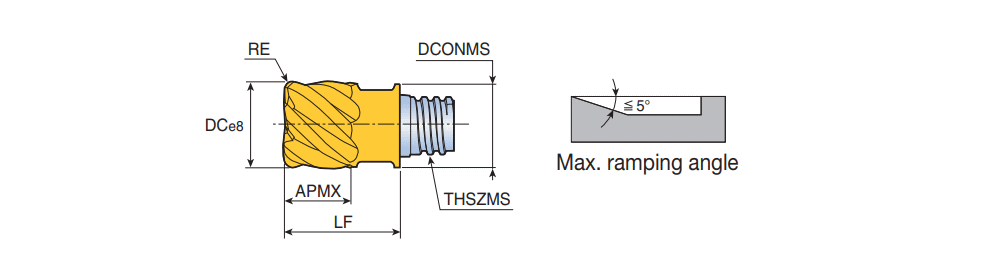

MXEE(D)-06 : Interchangeable solid carbide flat type end mill heads with 6 flute & various corner R for difficult-to-cut materials machining

Designation	Tool sty	DC	RE	FHA	APMX	THSZMS	DCONMS	LF	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXEE080L05R05-06S05	HEAD TYPE ~	8.00	0.50	45.0	5.00	S05	7.70	10.00	45.0~	6.00~	0.030	0.080	6~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	6~	6~	6191807	1	TT5523
MXEE080L05R10-06S05	HEAD TYPE ~	8.00	1.00	45.0	5.00	S05	7.70	10.00	45.0~	6.00~	0.030	0.080	6~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	6~	6~	6191808	1	TT5523
MXED100L07R05-06S06	HEAD TYPE ~	10.00	0.50	30.0	7.00	S06	9.70	13.00	30.0~	6.00~	0.035	0.090	6~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	6~	6~	6191812	1	TT5523
MXED100L07R10-06S06	HEAD TYPE ~	10.00	1.00	30.0	7.00	S06	9.70	13.00	30.0~	6.00~	0.035	0.090	6~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	6~	6~	6191813	1	TT5523
MXEE100L07R05-06S06	HEAD TYPE ~	10.00	0.50	45.0	7.00	S06	9.70	13.00	45.0~	3.00~	0.035	0.090	6~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	6~	6~	6191815	1	TT5523
MXEE100L07R10-06S06	HEAD TYPE ~	10.00	1.00	45.0	7.00	S06	9.70	13.00	45.0~	3.00~	0.035	0.090	6~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	6~	6~	6191816	1	TT5523
MXEE100L07R15-06S06	HEAD TYPE ~	10.00	1.50	45.0	7.00	S06	9.70	13.00	45.0~	3.00~	0.035	0.090	6~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	13.00~	13.00~	6~	6~	6191817	1	TT5523
MXED120L09R05-06S08	HEAD TYPE ~	12.00	0.50	30.0	9.00	S08	11.70	16.50	30.0~	6.00~	0.035	0.110	6~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	6~	6~	6191814	1	TT5523
MXEE120L09R00-06S08	HEAD TYPE ~	12.00	-	45.0	9.00	S08	11.70	16.50	45.0~	3.00~	0.035	0.110	6~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	6~	6~	6191819	1	TT5523
MXEE120L09R10-06S08	HEAD TYPE ~	12.00	1.00	45.0	9.00	S08	11.70	16.50	45.0~	3.00~	0.035	0.110	6~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	6~	6~	6191820	1	TT5523
MXEE120L09R15-06S08	HEAD TYPE ~	12.00	1.50	45.0	9.00	S08	11.70	16.50	45.0~	3.00~	0.035	0.110	6~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	16.50~	16.50~	6~	6~	6191821	1	TT5523

Wrench should be ordered separately
