TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

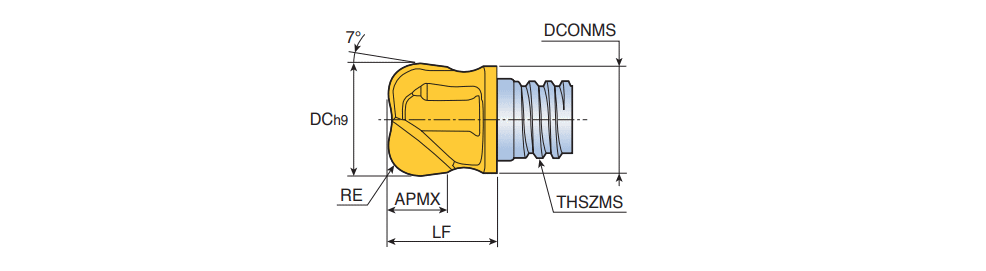

MXRB-02 : Interchangeable solid carbide Toroidal end mill heads with 2 flute & 7° relief angle

Designation	Tool sty	DC	RE	APMX	THSZMS	DCONMS	LF	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
MXRB200L11R50-02S12	HEAD TYPE ~	20.00	5.00	11.30	S12	18.30	17.30	0.0~	5.00~	0.050	0.150	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	17.30~	17.30~	2~	2~	6191831		1		TT5523

Wrench should be ordered separately
