TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

MXFX-02 (High feed) : Interchangeable solid carbide High Feed mill heads with 2 flute

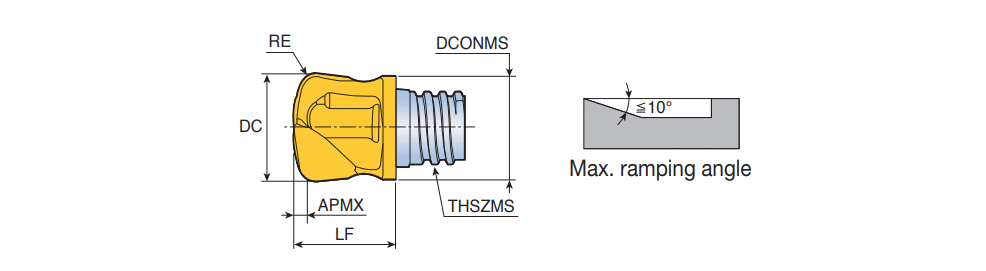

Designation	Tool sty	DC	RE	APMX	LF	THSZMS	DCONMS	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXFX100L0.6R20-02S06	HEAD TYPE ~	10.00	2.00	0.60	12.50	S06	9.60	7.00~	0.300	0.600	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-01 ~	12.50~	12.50~	2~	2~	6191836	1	TT5523
MXFX120L1.0R25-02S08	HEAD TYPE ~	12.00	2.50	0.68	11.10	S08	11.50	7.00~	0.500	1.000	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-01 ~	11.10~	11.10~	2~	2~	6191837	1	TT5523
MXFX160L1.1R30-02S10	HEAD TYPE ~	16.00	3.00	1.10	20.00	S10	15.20	7.00~	0.550	1.100	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-01 ~	20.00~	20.00~	2~	2~	6191838	1	TT5523
MXFX200L1.5R34-02S12	HEAD TYPE ~	20.00	3.40	1.50	17.40	S12	18.30	7.00~	0.750	1.500	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-01 ~	17.40~	17.40~	2~	2~	6254585	1	TT5523

Wrench should be ordered separately
