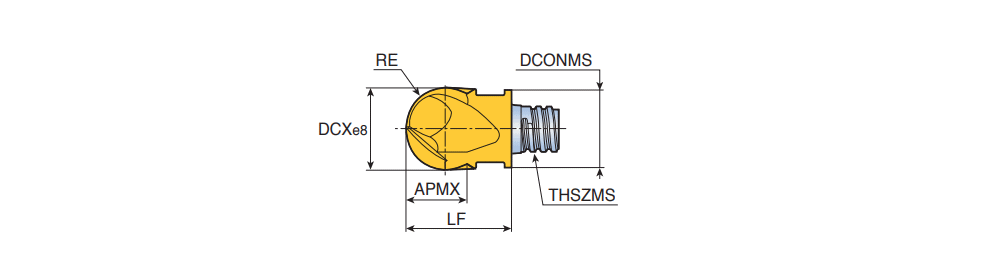

MXBD-BG-02 (Ball) : Interchangeable solid carbide Ball nose mill heads with 2 flute for high precision machining


 EM FLUTES_2  EM HELIX ANGLE_30
  DesignationTool sty DC RE APMX THSZMS DCONMS LF H.A Rd fz
(min) 		fz
(max) 		NOF  ClssID CCTMS CCFMS GRDMFG ISYC LPR LTA GICATGIREMgiicGICODEGrade & Vc     Click on grade for cutting speed value
  MXBD080L05-BG-02S05 HEAD TYPE ~8.003.98 5.00S05 7.7010.0030.0~0.00~0.030~0.080~2~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~10.00~10.00~6191839 1 TT5523
  MXBD100L07-BG-02S06 HEAD TYPE ~10.004.98 7.00S06 9.7013.0030.0~0.00~0.035~0.090~2~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~13.00~13.00~6191840 1 TT5523
  MXBD120L09-BG-02S08 HEAD TYPE ~12.005.98 9.00S08 11.7016.5030.0~0.00~0.035~0.110~2~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~16.50~16.50~6191841 1 TT5523
  MXBD160L09-BG-02S10 HEAD TYPE ~16.007.98 9.00S10 15.3020.5030.0~0.00~0.040~0.130~2~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~20.50~20.50~6191842 1 TT5523
Wrench should be ordered separately
