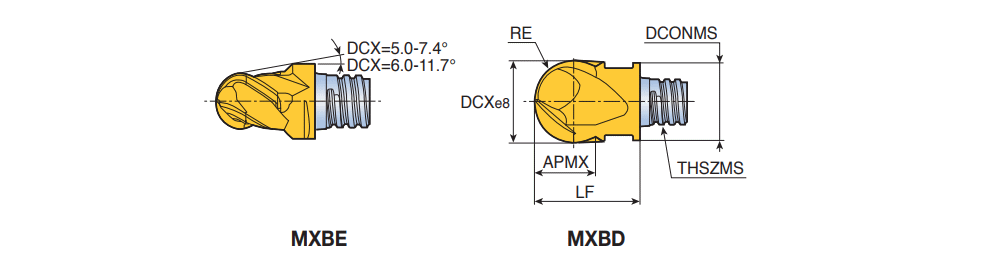

MXBD(E)-BG-04 (Ball) : Interchangeable solid carbide Ball nose mill heads with 4 flute for high precision machining


 EM FLUTES_4  EM HELIX ANGLE_30  EM HELIX ANGLE_38
  DesignationTool sty DC RE FHA APMX LF THSZMS DCONMS H.A Rd fz
(min) 		fz
(max) 		NOF  ClssID CCTMS CCFMS GRDMFG ISYC LPR LTA GICATGIREMgiicGICODEGrade & Vc     Click on grade for cutting speed value
  MXBE050L07-BG-04S05 HEAD TYPE ~5.002.49 38.07.0015.00S05 8.0038.0~0.00~0.000~0.000~4~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~15.00~15.00~6254601 1 TT5523
  MXBE060L04-BG-04S04 HEAD TYPE ~6.002.99 38.04.008.50S04 5.8038.0~0.00~0.000~0.000~4~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~8.50~8.50~6254602 1 TT5523
  MXBE060L05-BG-04S05 HEAD TYPE ~6.002.99 38.05.5010.00S05 8.0038.0~0.00~0.025~0.060~4~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~10.00~10.00~6191843 1 TT5523
  MXBD080L05-BG-04S05 HEAD TYPE ~8.003.98 30.05.0010.00S05 7.7030.0~0.00~0.030~0.080~4~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~10.00~10.00~6191844 1 TT5523
  MXBD100L07-BG-04S06 HEAD TYPE ~10.004.98 30.07.0013.00S06 9.7030.0~0.00~0.035~0.090~4~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~13.00~13.00~6191845 1 TT5523
  MXBD120L09-BG-04S08 HEAD TYPE ~12.005.98 30.09.0016.50S08 11.7030.0~0.00~0.035~0.110~4~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~16.50~16.50~6191846 1 TT5523
  MXBD160L12-BG-04S10 HEAD TYPE ~16.007.98 30.012.0020.50S10 15.3030.0~0.00~0.040~0.130~4~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~20.50~20.50~6191847 1 TT5523
  MXBD200L15-BG-04S12 HEAD TYPE ~20.009.97 30.015.0025.50S12 18.3030.0~0.00~0.050~0.150~4~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~25.50~25.50~6191848 1 TT5523
  MXBD250L22-BG-04S15 HEAD TYPE ~25.0012.47 30.022.0037.00S15 23.9030.0~0.00~0.060~0.170~4~71E01A05D27A8 ~SAI ~01 ~TT5523~303-06 ~37.00~37.00~6191849 1 TT5523
Wrench should be ordered separately
