TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

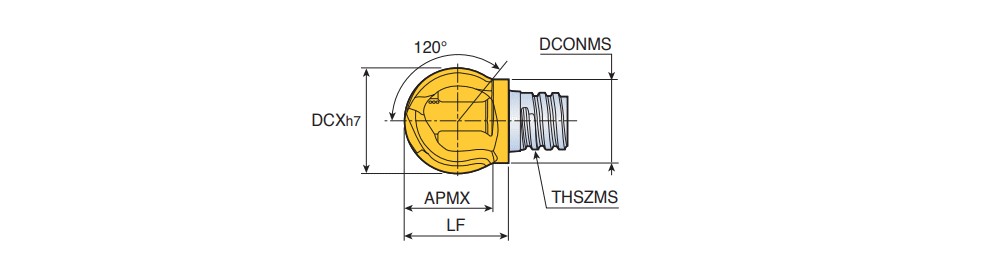

MXBB-SG-02 : Interchangeable solid carbide Spherical Ball nose mill heads with 2 flute

Designation	Tool sty	DC	APMX	THSZMS	DCONMS	LF	KEY	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXBB080L05-SG-02S04	HEAD TYPE ~	8.00	5.00	S04	5.80	8.20	MX KEY-S04	0.0~	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-06 ~	8.20~	8.20~	6254608	1	TT5523
MXBB100L07-SG-02S05	HEAD TYPE ~	10.00	7.00	S05	7.60	10.00	MX KEY-S05	0.0~	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-06 ~	10.00~	10.00~	6254609	1	TT5523
MXBB120L09-SG-02S06	HEAD TYPE ~	12.00	9.00	S06	9.50	11.60	MX KEY-S08	0.0~	0.00~	0.035~	0.110~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-06 ~	11.60~	11.60~	6191850	1	TT5523
MXBB160L12-SG-02S08	HEAD TYPE ~	16.00	12.00	S08	9.50	11.60	MX KEY-S10	0.0~	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-06 ~	15.40~	15.40~	6254610	1	TT5523
MXBB200L15-SG-02S10	HEAD TYPE ~	20.00	15.00	S10	12.20	15.40	MX KEY-S10	0.0~	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-06 ~	18.40~	18.40~	6254611	1	TT5523
MXBB250L18-SG-02S12	HEAD TYPE ~	25.00	18.00	S12	15.20	18.40	MX KEY-S12	0.0~	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-06 ~	23.20~	23.20~	6254612	1	TT5523

Wrench should be ordered separately
