TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

MXBE-BGA02 (Ball) : Interchangeable solid carbide Ball nose end mill heads with 2 flute for precision machining of aluminum

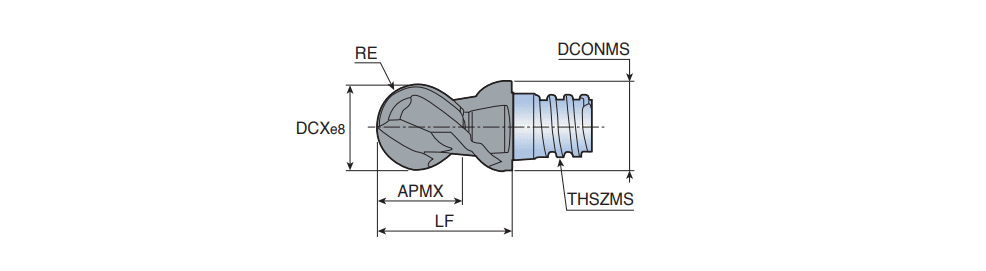

Designation	Tool sty	DC	RE	APMX	THSZMS	DCONMS	LF	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
MXBE080L05-BGA02S05	HEAD TYPE ~	8.00	3.98	5.00	S05	7.70	10.00	45.0~	0.00~	0.030~	0.080~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-06 ~	10.00~	10.00~	6859254	2	TTA101 UF10
MXBE100L07-BGA02S06	HEAD TYPE ~	10.00	4.98	7.00	S06	9.70	13.00	45.0~	0.00~	0.035~	0.090~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-06 ~	13.00~	13.00~	6859266	2	TTA101 UF10
MXBE120L09-BGA02S08	HEAD TYPE ~	12.00	5.99	9.00	S08	11.70	16.50	45.0~	0.00~	0.035~	0.110~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-06 ~	16.50~	16.50~	6859307	2	TTA101 UF10
MXBE160L12-BGA02S10	HEAD TYPE ~	16.00	7.98	12.00	S10	15.30	20.50	45.0~	0.00~	0.040~	0.130~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-06 ~	20.50~	20.50~	6859267	2	TTA101 UF10
MXBE200L15-BGA02S12	HEAD TYPE ~	20.00	9.97	15.00	S12	18.30	25.50	45.0~	0.00~	0.050~	0.150~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TTA101~	303-06 ~	25.50~	25.50~	6859313	2	TTA101 UF10

-Wrench should be ordered separately
-TTA101 grade : ta-C coating -
