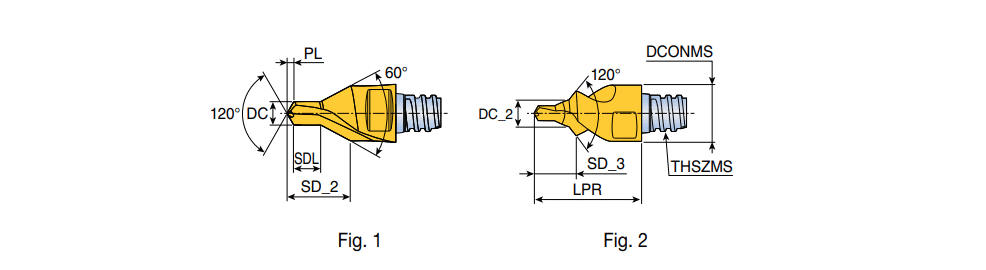

MXDP-02 : Interchangeable solid carbide Centering drill heads with 2 flute

Designation	Tool sty	S1	DC	DC_2	SDL	SD_2	SD_3	LPR	THSZMS	DCONMS	PL	Fig.	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXDP107L01A30-02S04	HEAD TYPE ~	9.00~	1.07	-	1.32	4.14	-	10.00	S04	6.00	0.28	1	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-10 ~	10.00~	6254616	1	TT5523
MXDP165L02A30-02S04	HEAD TYPE ~	9.00~	1.65	-	1.97	4.45	-	10.00	S04	6.00	0.43	1	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-10 ~	10.00~	6254617	1	TT5523
MXDP207L02A30-02S04	HEAD TYPE ~	9.00~	2.07	-	2.36	6.37	-	10.00	S04	6.00	0.54	1	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-10 ~	10.00~	6254618	1	TT5523
MXDP328L04A30-02S05	HEAD TYPE ~	9.00~	3.28	-	3.75	8.76	-	15.00	S05	8.00	0.85	1	0.00~	0.040~	0.080~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-10 ~	15.00~	6191870	1	TT5523
MXDP412L05A30-02S06	HEAD TYPE ~	9.00~	4.12	-	4.83	11.05	-	19.00	S06	10.00	1.07	1	0.00~	0.050~	0.100~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-10 ~	19.00~	6191871	1	TT5523
MXDP513L07A30-02S08	HEAD TYPE ~	9.00~	5.13	-	5.88	13.23	-	23.00	S08	12.00	1.32	1	0.00~	0.050~	0.120~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-10 ~	23.00~	6191872	1	TT5523
MXDP646L08A30-02S10	HEAD TYPE ~	9.00~	6.46	-	7.25	17.18	-	28.00	S10	16.00	1.65	1	0.00~	0.060~	0.150~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-10 ~	28.00~	6191873	1	TT5523
MXDP324L04B30-02S08	HEAD TYPE ~	10.00~	3.24	6.77	3.55	7.40	8.94	23.00	S08	12.00	0.83	2	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-10 ~	23.00~	6254619	1	TT5523
MXDP509L06B30-02S12	HEAD TYPE ~	10.00~	5.09	10.69	5.56	11.70	14.10	25.50	S12	18.50	1.33	2	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-10 ~	25.50~	6254621	1	TT5523
MXDP641L08B30-02S12	HEAD TYPE ~	10.00~	6.41	13.29	6.95	14.50	16.50	25.50	S12	20.00	1.68	2	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-10 ~	25.50~	6254622	1	TT5523

Wrench should be ordered separately
SDL: Step diameter length
