TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

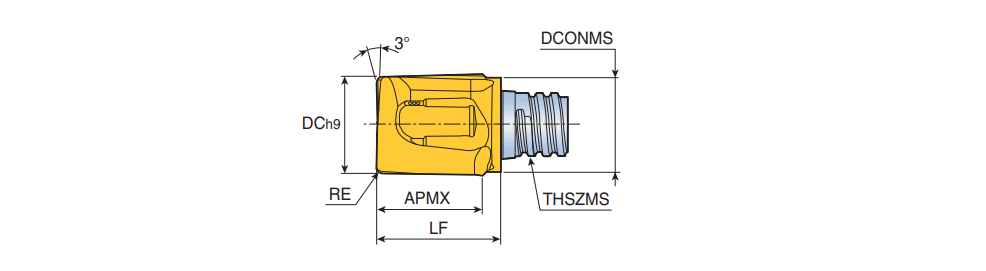

MXGC-02 : Interchangeable solid carbide heads with 2 flute for Counter boring

Designation	Tool sty	DC	RE	APMX	THSZMS	DCONMS	LF	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXGC080L08R04-02S05	HEAD TYPE ~	8.00	0.40	7.70	S05	7.60	10.00	10.0~	5.00~	0.030	0.080	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	2~	2~	6191875	1	TT5523
MXGC080L08R10-02S05	HEAD TYPE ~	8.00	1.00	7.70	S05	7.60	10.00	10.0~	5.00~	0.030	0.080	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	10.00~	10.00~	2~	2~	6191876	1	TT5523
MXGC100L09R04-02S06	HEAD TYPE ~	10.00	0.40	9.00	S06	9.50	12.40	10.0~	5.00~	0.035	0.090	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	12.40~	12.40~	2~	2~	6191877	1	TT5523
MXGC100L09R20-02S06	HEAD TYPE ~	10.00	2.00	9.00	S06	9.50	12.40	10.0~	5.00~	0.035	0.090	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	12.40~	12.40~	2~	2~	6191878	1	TT5523
MXGC120L10R04-02S08	HEAD TYPE ~	12.00	0.40	10.00	S08	11.50	14.20	10.0~	5.00~	0.035	0.110	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	14.20~	14.20~	2~	2~	6191879	1	TT5523
MXGC120L10R10-02S08	HEAD TYPE ~	12.00	1.00	10.00	S08	11.50	14.20	10.0~	5.00~	0.035	0.110	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	14.20~	14.20~	2~	2~	6191881	1	TT5523
MXGC120L10R20-02S08	HEAD TYPE ~	12.00	2.00	10.00	S08	11.50	14.20	10.0~	5.00~	0.035	0.110	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	14.20~	14.20~	2~	2~	6191882	1	TT5523
MXGC160L15R04-02S10	HEAD TYPE ~	16.00	0.40	14.90	S10	15.20	19.00	10.0~	5.00~	0.040	0.130	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	19.00~	19.00~	2~	2~	6191883	1	TT5523

Wrench should be ordered separately
