TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

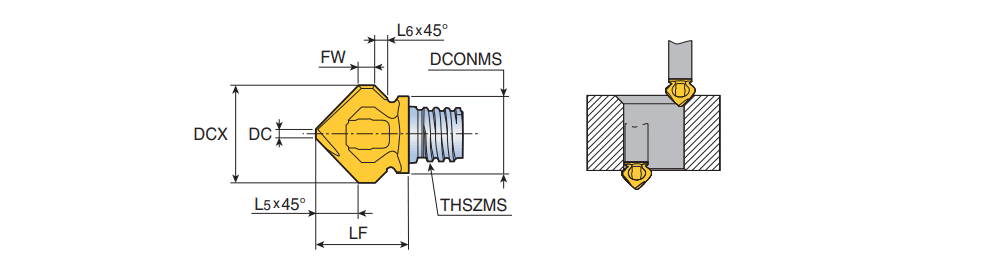

MXCW-02 : Interchangeable solid carbide heads for top and bottom Chamfering with 2 flute

Designation	Tool sty	DCX	DC	L5	LF	FW	L6	THSZMS	DCONMS	KEY	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXCW098L04A45-02S05	HEAD TYPE ~	9.80	1.20	4.30	10.80	2.50	1.20	S05	7.60	MX KEY-S06	0.0~	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-03 ~	10.80~	10.80~	6254613	1	TT5523
MXCW118L05A45-02S06	HEAD TYPE ~	11.80	1.20	5.30	11.20	2.00	1.20	S06	9.30	MX KEY-S08	0.0~	0.00~	0.035~	0.110~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-03 ~	11.20~	11.20~	6191889	1	TT5523
MXCW157L07A45-02S08	HEAD TYPE ~	15.70	1.50	7.10	14.00	2.00	1.20	S08	11.50	MX KEY-S10	0.0~	0.00~	0.000~	0.000~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-03 ~	14.00~	14.00~	6254614	1	TT5523

Wrench should be ordered separately
