TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

MXCR-02 : Interchangeable solid carbide end mill heads with 2 flute for Round chamfering

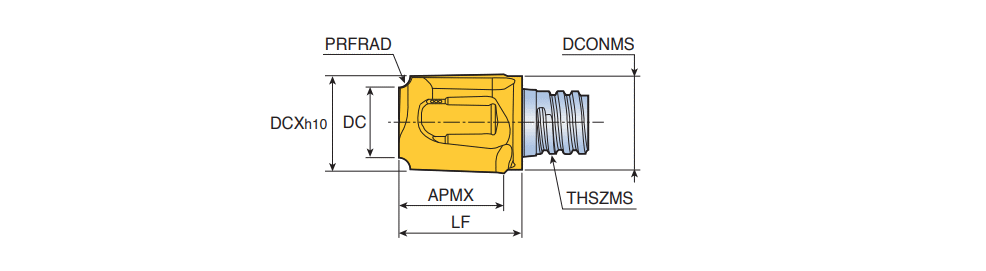

Designation	Tool sty	DCX	DC	PRFRAD	APMX	THSZMS	DCONMS	LF	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXCR080L07R10-02S05	HEAD TYPE ~	8.00	5.80	1.00	7.50	S05	7.60	10.50	0.0~	0.00~	0.030	0.080	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-08 ~	10.50~	10.50~	6191890	1	TT5523
MXCR100L09R16-02S06	HEAD TYPE ~	10.00	6.80	1.60	9.50	S06	9.50	12.50	0.0~	0.00~	0.035	0.090	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-08 ~	12.50~	12.50~	6191891	1	TT5523
MXCR100L09R25-02S06	HEAD TYPE ~	10.00	5.10	2.50	9.50	S06	9.50	12.50	0.0~	0.00~	0.035	0.090	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-08 ~	12.50~	12.50~	6191892	1	TT5523
MXCR127L12R30-02S08	HEAD TYPE ~	12.70	6.50	3.00	12.00	S08	12.20	15.60	0.0~	0.00~	0.035	0.110	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-08 ~	15.60~	15.60~	6191893	1	TT5523
MXCR127L12R40-02S08	HEAD TYPE ~	12.70	4.70	4.00	12.00	S08	12.20	15.60	0.0~	0.00~	0.035	0.110	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-08 ~	15.60~	15.60~	6191894	1	TT5523
MXCR160L15R50-02S10	HEAD TYPE ~	16.00	6.20	5.00	15.00	S10	15.20	19.10	0.0~	0.00~	0.040	0.130	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-08 ~	19.10~	19.10~	6191895	1	TT5523
MXCR200L07R60-02S12	HEAD TYPE ~	20.00	8.00	6.00	7.00	S12	18.30	17.40	0.0~	0.00~	0.050	0.150	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-08 ~	17.40~	17.40~	6191896	1	TT5523

Wrench should be ordered separately
