TST-3 : Interchangeable solid carbide small dia Slot milling heads for width 1.5 to 3.17 mm with 3 flute

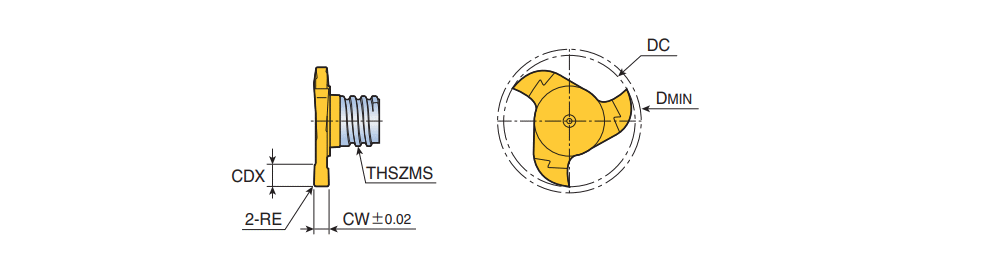

Designation	Tool sty	DC	CW	CDX	RE	THSZMS	DMIN	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TST157W1.50R010-3S06	HEAD TYPE ~	15.70	1.50	2.80	0.10	S06	16.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	1.82~	1.82~	6231201	1	TT5543
TST157W1.57R020-3S06	HEAD TYPE ~	15.70	1.57	2.80	0.20	S06	16.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	1.72~	1.72~	6231202	1	TT5543
TST157W2.0R020-3S06	HEAD TYPE ~	15.70	2.00	2.80	0.20	S06	16.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	2.14~	2.14~	6231203	1	TT5543
TST157W2.50R020-3S06	HEAD TYPE ~	15.70	2.50	2.80	0.20	S06	16.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	2.62~	2.62~	6231204	1	TT5543
TST157W3.0R020-3S06	HEAD TYPE ~	15.70	3.00	2.80	0.20	S06	16.00	0.0~	0.00~	0.025	0.130	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	3.14~	3.14~	6231205	1	TT5543
TST157W3.17R020-3S06	HEAD TYPE ~	15.70	3.17	2.80	0.20	S06	16.00	0.0~	0.00~	0.025	0.150	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	3.31~	3.31~	6231206	1	TT5543
TST177W1.20R005-3S06	HEAD TYPE ~	17.70	1.20	3.80	0.05	S06	18.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	1.95~	1.95~	6231207	1	TT5543
TST177W1.40R005-3S06	HEAD TYPE ~	17.70	1.40	3.80	0.05	S06	18.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	1.55~	1.55~	6231208	1	TT5543
TST177W1.50R010-3S06	HEAD TYPE ~	17.70	1.50	3.80	0.10	S06	18.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	1.65~	1.65~	6231209	1	TT5543
TST177W1.57R020-3S06	HEAD TYPE ~	17.70	1.57	3.80	0.20	S06	18.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	2.22~	2.22~	6231210	1	TT5543
TST177W1.70R005-3S06	HEAD TYPE ~	17.70	1.70	3.80	0.05	S06	18.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	1.85~	1.85~	6231211	1	TT5543
TST177W2.0R020-3S06	HEAD TYPE ~	17.70	2.00	3.80	0.20	S06	18.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	2.79~	2.79~	6231212	1	TT5543
TST177W2.20R110-3S06	HEAD TYPE ~	17.70	2.20	3.80	1.10	S06	18.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	2.34~	2.34~	6231213	1	TT5543
TST177W2.50R020-3S06	HEAD TYPE ~	17.70	2.50	3.80	0.20	S06	18.00	0.0~	0.00~	0.025	0.120	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	3.21~	3.21~	6231214	1	TT5543
TST177W3.0R020-3S06	HEAD TYPE ~	17.70	3.00	3.80	0.20	S06	18.00	0.0~	0.00~	0.025	0.130	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	3.15~	3.15~	6231215	1	TT5543
TST177W3.17R020-3S06	HEAD TYPE ~	17.70	3.17	3.80	0.20	S06	18.00	0.0~	0.00~	0.025	0.150	3~	71EF07E037025 ~	SAI ~	01 ~	TT5543~	303-05 ~	3.32~	3.32~	6231216	1	TT5543

Wrench should be ordered separately
