TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

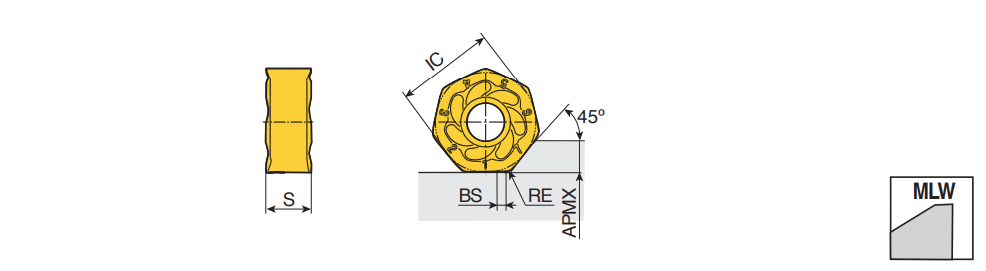

XNHU 06 ANR-MLW : Double-sided inserts of economical 14 cutting edges with optimized wiper geometry for finishing of exotic materials

MLW chip formers will be available as a special grade for turbocharger machining operations

Designation	IC	S	BS	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
XNHU 0605 ANR-MLW	13.70	6.20	1.50	0.20	3.50	6.00~	14~	C2H-XN06 ~	0.30	1.00	0.080	0.150	M8 ~	X ~	71DD68D7A8E5F ~	G40 ~	MLW ~	TT8080~	IS$$239336261382750 ~	XNHU 06 ~	0~	5630160		1		TT8080
