TST-A45 : Interchangeable solid carbide small dia 45° Chamfering heads with 3 & 4 flute

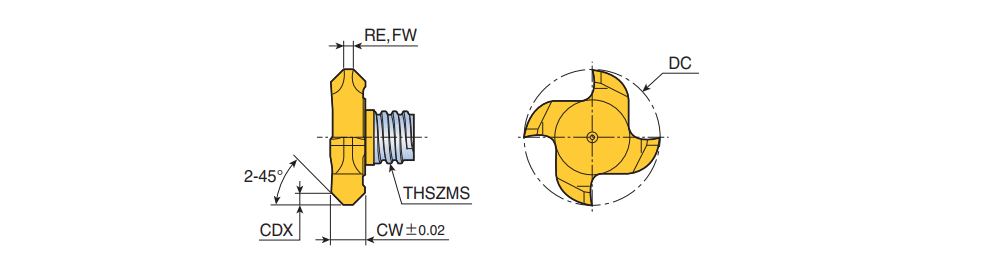

Designation	Tool sty	DC	NOF	CW	CDX	RE	FW	THSZMS	H.A	Rd	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TST177L01.40A45-3S06	HEAD TYPE ~	17.70	3	3.40	1.40	0.10	-	S06	0.0~	0.00~	0.025	0.150	71E01A05D27A8 ~	SAI ~	01 ~	TT5543~	303-05 ~	3.40~	3.40~	6231217	1	TT5543
TST217L01.70A45-4S08	HEAD TYPE ~	21.70	4	5.50	1.70	-	1.50	S08	0.0~	0.00~	0.025	0.170	71E01A05D27A8 ~	SAI ~	01 ~	TT5543~	303-05 ~	5.46~	5.46~	6231241	1	TT5543
TST277L04.00A45-6S10	HEAD TYPE ~	27.70	6	9.80	4.00	-	0.50	S10	0.0~	0.00~	0.030	0.170	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-05 ~	10.66~	10.66~	6254789	1	TT5523

Wrench should be ordered separately
FW: Flat width
