MXAD-M : MAXIRUSH adaptors with T-FLEXTEC M-threaded adaptations

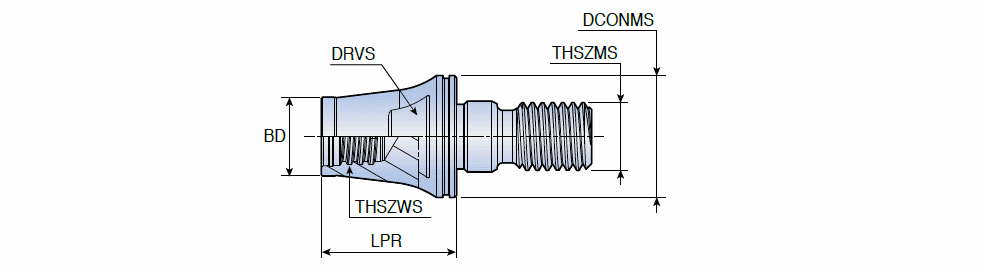

  DesignationTHSZWS THSZMS DCONMS BD LPR DRVS  Shank. M ClssID CCTMS CCFMS CCTWS CCFWS LTA TQ_3 GICATGIREMgiicGICODE
  MXAD130L016S08-S-M8 S08 M08 13.0011.7016.0011.0Steel 71EAD3871D313 ~SAI ~02 ~SAI ~01 ~16.00~0~6859116 0
  MXAD130L025S08-S-M8 S08 M08 13.0011.7025.0011.0Steel 71EAD3871D313 ~SAI ~02 ~SAI ~01 ~25.00~0~6859117 0
  MXAD180L020S08-S-M10 S08 M10 18.0011.7020.0013.0Steel 71EAD3871D313 ~SAI ~02 ~SAI ~01 ~20.00~0~6859187 0
  MXAD180L025S08-S-M10 S08 M10 18.0011.7025.0011.0Steel 71EAD3871D313 ~SAI ~02 ~SAI ~01 ~25.00~0~6859188 0
  MXAD210L020S08-S-M12 S08 M12 21.0011.7020.0012.8Steel 71EAD3871D313 ~SAI ~02 ~SAI ~01 ~20.00~0~6859171 0
  MXAD210L025S08-S-M12 S08 M12 21.0011.7025.0012.8Steel 71EAD3871D313 ~SAI ~02 ~SAI ~01 ~25.00~0~6859155 0
Note: For MXSC type shank, just TST slotting head is recommended. If other heads are used on the MXSC shank, the depth of cut must be smaller than the max. ap in each head. The MXSC type shank does nothave external clearance, so the shank may interfere with the work piece.
