TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

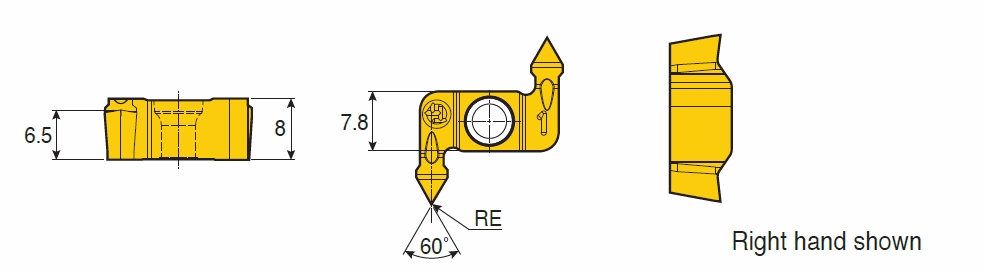

TDGX-R/L (FACE-R) : Screw type double-ended inserts with rigid & anti-rotating design for 60° partial profile threading

Designation	RE	TPN	TPX	TPIN	TPIX	CWTOL	SC	R	CB1	W	W+-toler	HAND	ClssID	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
TDGX 4MT-0.05-L	0.05	0.45	3.50	8.00	56.00	0.000~	~	0.000~	~	0.00~	0.00~	L ~	71DDA089C8D1E ~	2~	PVD ~	S ~	TT9080~	IS$$117805423939636 ~	6330935		1		TT9080
TDGX 4MT-0.05-R	0.05	0.45	3.50	8.00	56.00	0.000~	~	0.000~	~	0.00~	0.00~	R ~	71DDA089C8D1E ~	2~	PVD ~	S ~	TT9080~	IS$$117718396851279 ~	6320554		1		TT9080

TPN: Thread pitch minimum
TPX: Thread pitch maximum
TPIX : Thread per inch maximum
TPIN : Thread per inch minimum
