TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TFMPT-R-05 : High Feed mills with PTKU 05 inserts of economical 10 cutting edges in maximum depth of cut ap 1.5 mm

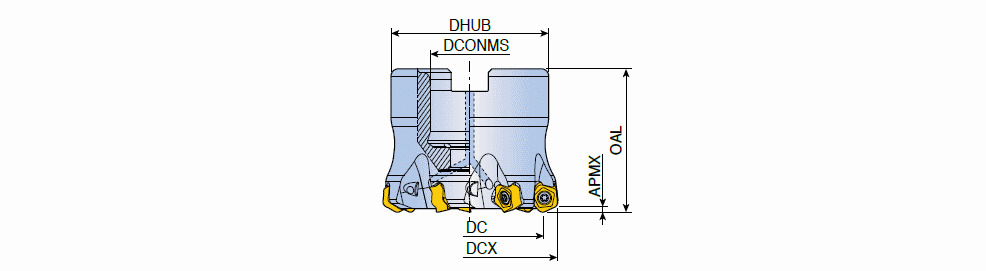

Designation	Tool sty	DCX	CICT	DC	DCONMS	DHUB	OAL	APMX		Arbor	KAPR		Mtg. Ref	S1	D3	Rd	R/L	PD	Insert	Pocket	ClssID	MIID	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TFMPT 640-16R-05	FACE MILL ~	40.00	6	31.80	16.00	38.00	40.00	1.50	O	A	25.0~	0.30	SH M8x25	5.00~	0.00~	0.80~	~	XF ~	C10M-PT05 ~	PTKU05 ~	71E01A05B627B ~	PTKU 0503R-M	FDA ~	02 ~	FF ~	IS$$716464360867389 ~	40.00~	6~	6~	6~	6307977
TFMPT 750-22R-05	FACE MILL ~	50.00	7	41.80	22.00	45.00	40.00	1.50	O	A	25.0~	0.40	LH M10x25	5.00~	0.00~	0.70~	~	F ~	C10M-PT05 ~	PTKU05 ~	71E01A05B627B ~	PTKU 0503R-M	FDA ~	02 ~	FF ~	IS$$716464360867389 ~	40.00~	7~	7~	7~	6307978
TFMPT 752-22R-05	FACE MILL ~	52.00	7	43.80	22.00	45.00	40.00	1.50	O	A	25.0~	0.30	LH M10x25	5.00~	0.00~	0.70~	~	F ~	C10M-PT05 ~	PTKU05 ~	71E01A05B627B ~	PTKU 0503R-M	FDA ~	02 ~	FF ~	IS$$716464360867389 ~	40.00~	7~	7~	7~	6307979
TFMPT 863-22R-05	FACE MILL ~	63.00	8	54.80	22.00	58.00	50.00	1.50	O	A	25.0~	0.80	SH M10x30	5.00~	0.00~	0.60~	~	F ~	C10M-PT05 ~	PTKU05 ~	71E01A05B627B ~	PTKU 0503R-M	FDA ~	02 ~	FF ~	IS$$716464360867389 ~	50.00~	8~	8~	8~	6307980
TFMPT 866-27R-05	FACE MILL ~	66.00	8	57.80	27.00	58.00	50.00	1.50	O	A	25.0~	0.70	SH M12x35	5.00~	0.00~	0.60~	~	F ~	C10M-PT05 ~	PTKU05 ~	71E01A05B627B ~	PTKU 0503R-M	FDA ~	02 ~	FF ~	IS$$716464360867389 ~	50.00~	8~	8~	8~	6307981
