TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TFMPT-R-10 : High Feed mills with PTKU 10 inserts of economical 10 cutting edges in maximum depth of cut ap 3.0 mm

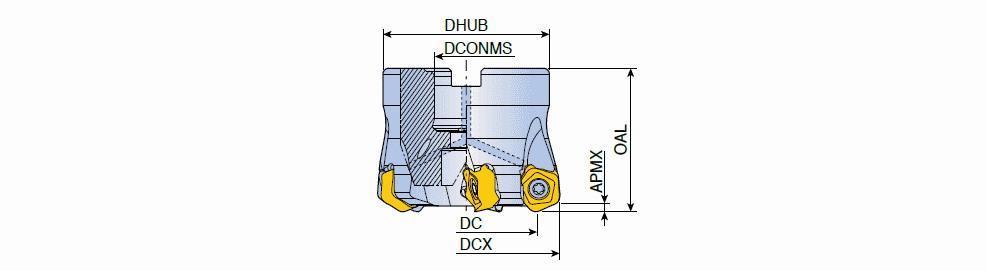

Designation	Tool sty	DCX	CICT	DC	DCONMS	DHUB	OAL	APMX		Arbor	KAPR		Mtg. Ref	S1	D3	Rd	R/L	PD	Insert	Pocket	ClssID	MIID	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TFMPT 450-22R-10	FACE MILL ~	50.00	4	33.40	22.00	45.00	40.00	3.00	O	E	25.0~	0.30	TCS10-40	10.00~	0.00~	1.90~	~	RC ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	FF ~	IS$$663860748679252 ~	40.00~	4~	4~	4~	6307987
TFMPT 563-22R-10	FACE MILL ~	63.00	5	46.40	22.00	58.00	50.00	3.00	O	A	25.0~	0.80	SH M10x30	10.00~	0.00~	1.70~	~	RC ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	FF ~	IS$$663860748679252 ~	50.00~	5~	5~	5~	6307988
TFMPT 566-22R-10	FACE MILL ~	66.00	5	49.40	22.00	58.00	50.00	3.00	O	A	25.0~	0.80	SH M10x30	10.00~	0.00~	2.20~	~	RC ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	FF ~	IS$$663860748679252 ~	50.00~	5~	5~	5~	6307989
TFMPT 680-25.4R-10	FACE MILL ~	80.00	6	63.40	25.40	70.00	60.00	3.00	O	A	25.0~	1.48	SH M12x35	10.00~	0.00~	1.50~	~	RC ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	FF ~	IS$$663860748679252 ~	59.95~	6~	6~	6~	6210977
TFMPT 680-27R-10	FACE MILL ~	80.00	6	63.40	27.00	70.00	60.00	3.00	O	A	25.0~	1.40	SH M12x30	10.00~	0.00~	1.50~	~	RC ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-MM	FDA ~	02 ~	FF ~	IS$$663860748679252 ~	60.00~	6~	6~	6~	6307990
TFMPT 8100-31.75R-10	FACE MILL ~	100.00	8	83.30	31.75	80.00	60.00	3.00	O	B	25.0~	1.96	-	10.00~	0.00~	1.10~	~	RF ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	FF ~	IS$$663860748679252 ~	59.95~	8~	8~	8~	6210978
TFMPT 8100-32R-10	FACE MILL ~	100.00	8	83.40	32.00	85.00	60.00	3.00	O	A	25.0~	2.30	SH M16x35	10.00~	0.00~	1.10~	~	RF ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	FF ~	IS$$663860748679252 ~	60.00~	8~	8~	8~	6307991
TFMPT 9125-32R-10	FACE MILL ~	125.00	9	108.40	32.00	85.00	60.00	3.00	O	A	25.0~	3.10	SH M16x35	10.00~	0.00~	0.80~	~	RF ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	FF ~	IS$$663860748679252 ~	60.00~	9~	9~	9~	6307992
TFMPT 9125-38.1R-10	FACE MILL ~	125.00	9	108.30	38.10	80.00	60.00	3.00	O	B	25.0~	2.61	-	10.00~	0.00~	0.80~	~	RF ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	FF ~	IS$$663860748679252 ~	59.95~	9~	9~	9~	6210979
TFMPT 10160-40R-10	FACE MILL ~	160.00	10	143.40	40.00	110.00	60.00	3.00	X	C	25.0~	4.10	-	10.00~	0.00~	0.60~	~	RC ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-MM	SPK ~	02 ~	FF ~	IS$$663860748679252 ~	60.00~	10~	10~	10~	6307993
TFMPT 10160-50.8R-10	FACE MILL ~	160.00	10	143.30	50.80	100.00	60.00	3.00	O	B	25.0~	4.21	-	10.00~	0.00~	0.60~	~	RC ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	FF ~	IS$$663860748679252 ~	59.95~	10~	10~	10~	6210981
TFMPT 12200-60R-10	FACE MILL ~	200.00	12	183.40	60.00	130.00	60.00	3.00	X	C	25.0~	5.70	-	10.00~	0.00~	0.50~	~	RC ~	C10M-PT10 ~	PTKU10 ~	71E01A05B627B ~	PTKU 1006R-M	SPK ~	02 ~	FF ~	IS$$663860748679252 ~	60.00~	12~	12~	12~	6307994

DCN: Cutting diameter minimum
DCX: Cutting diameter maximum
