TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TFM65PT-R-10 : 65° Face mills of economical 10 cutting edges inserts with high positive rake angles for general milling in maximum depth of cut ap 6.5 mm

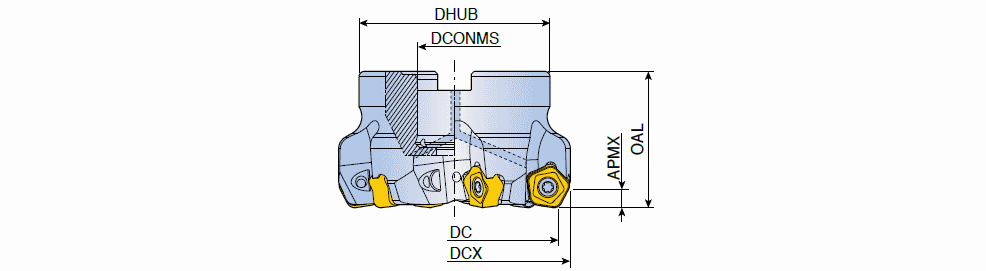

Designation	Tool sty	DC	CICT	DCX	DCONMS	DHUB	OAL	APMX		Arbor		Mtg. Ref	S1	D3	Rd	KAPR	R/L	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TFM65PT 680-27R-10	FACE MILL ~	80.00	6	87.40	27.00	70.00	50.00	6.50	O ~	A	1.20	LH M12x30	10.00~	0.00~	1.50~	65.0~	~	RC ~	C10M-PT10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	IS$$663860748679252 ~	50.00~	6~	6~	6~	6320421
TFM65PT 8100-32R-10	FACE MILL ~	100.00	8	107.40	32.00	85.00	50.00	6.50	O ~	A	1.90	LH M16x35	10.00~	0.00~	1.10~	65.0~	~	RF ~	C10M-PT10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	IS$$663860748679252 ~	50.00~	8~	8~	8~	6320422
TFM65PT 9125-40R-10	FACE MILL ~	125.00	9	132.40	40.00	85.00	63.00	6.50	O ~	A	3.20	SH M20x40	10.00~	0.00~	0.80~	65.0~	~	RF ~	C10M-PT10 ~	71E01A05B627B ~	PTKU 1006R-M	FDA ~	02 ~	IS$$663860748679252 ~	63.00~	9~	9~	9~	6320423
