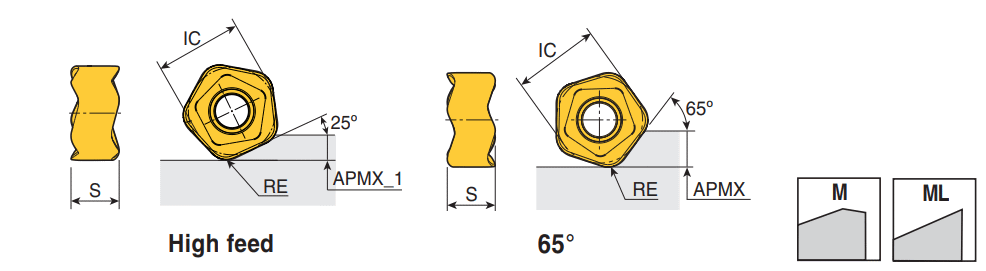

PTKU 05-M/ML : High positive double-sided inserts with economical 10 cutting edges for 65° Face mills and High Feed mills

Designation	IC	S	APMX	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	APMX_1	ap.min_1	ap.max_1	fz.max_1	fz.min_1	SF	Insert	CEDC	SC	Pocket	ESP	ClssID	apmax MF	CB	GRDMFG	IIC	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
PTKU 0503R-M	7.10	3.84	3.30	1.50	5.00~	1.00	3.00	0.200	0.070	1.50	0.20	1.50	1.200	0.200	M8 ~	C10M-PT05 ~	10~	PENTA ~	PTKU 05 ~	U60 ~	71DD68D80B094 ~	3.30~	M ~	TT2510~	IS$$716464360867389 ~	0~	6308002		3		TT8080 TT9080 TT2510
PTKU 0503R-ML	7.10	3.84	3.30	1.50	5.00~	1.00	3.00	0.200	0.070	1.50	0.20	1.50	1.200	0.200	M8 ~	C10M-PT05 ~	10~	PENTA ~	PTKU 05 ~	U60 ~	71DD68D80B094 ~	3.30~	M ~	TT3535~	IS$$716464360867389 ~	0~	6252119		1		TT3535

For high feed milling,please refer to the parameters below
-APMX_1
-ap.min_1, ap.max_1
-fz.max_1, fz.min_1
