TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

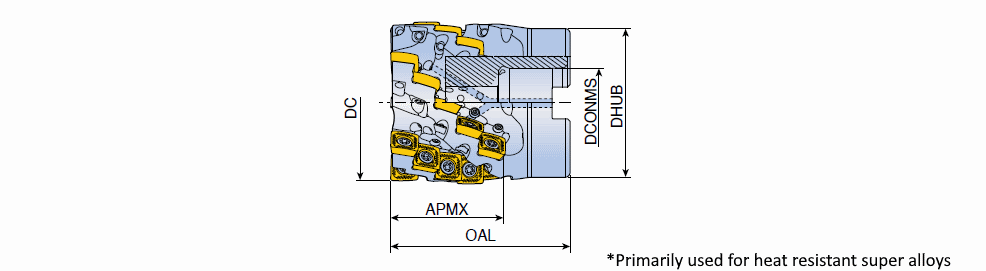

4S-TES-R-11V : Extended flute shell mills for exotic material machining with unique rigid V-bottom positive square SVK(H)T inserts of four convex cutting edges without mismatch

Designation	Tool sty	DC	NOF	CICT	DCONMS	DHUB	OAL	APMX		Arbor		Mtg. Ref	S1	D3	Rd	KAPR	R/L	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
4S-TES-D40-27-16R-11V-3F	EXTENDED FLUTE ~	40.00	3	9	16.00	38.00	55.00	27.40	O ~	A	0.30	SH M8x40	11.00~	0.00~	0.00~	90.0~	~	C ~	CVQ-SV11 ~	71E01A05B627B ~	SVKT 114508-ML	FDA ~	02 ~	IS$$678247058514781 ~	55.00~	3~	3~	6309081
4S-TES-D50-43-22R-11V-4F	EXTENDED FLUTE ~	50.00	4	20	22.00	45.00	65.00	43.90	O ~	A	0.60	SH M10x50	11.00~	0.00~	0.00~	90.0~	~	C ~	CVQ-SV11 ~	71E01A05B627B ~	SVKT 114508-ML	FDA ~	02 ~	IS$$678247058514781 ~	65.00~	4~	4~	6309082
4S-TES-D50-69-22R-11V-4F	EXTENDED FLUTE ~	50.00	4	32	22.00	45.00	90.00	69.40	O ~	A	0.80	SH M10x80	11.00~	0.00~	0.00~	90.0~	~	C ~	CVQ-SV11 ~	71E01A05B627B ~	SVKT 114508-ML	FDA ~	02 ~	IS$$678247058514781 ~	90.00~	4~	4~	6323404
4S-TES-D63-60-27R-11V-5F	EXTENDED FLUTE ~	63.00	5	35	27.00	58.00	85.00	60.90	O ~	A	1.20	SH M12x60	11.00~	0.00~	0.00~	90.0~	~	C ~	CVQ-SV11 ~	71E01A05B627B ~	SVKT 114508-ML	FDA ~	02 ~	IS$$678247058514781 ~	85.00~	5~	5~	6319114
4S-TES-D63-69-27R-11V-5F	EXTENDED FLUTE ~	63.00	5	40	27.00	58.00	93.00	69.40	O ~	A	1.40	SH M12x80	11.00~	0.00~	0.00~	90.0~	~	C ~	CVQ-SV11 ~	71E01A05B627B ~	SVKT 114508-ML	FDA ~	02 ~	IS$$678247058514781 ~	93.00~	5~	5~	6309083
4S-TES-D80-76-32R-11V-6F	EXTENDED FLUTE ~	80.00	6	54	32.00	76.00	100.00	77.00	O ~	A	2.60	SH M16x80	11.00~	0.00~	0.00~	90.0~	~	C ~	CVQ-SV11 ~	71E01A05B627B ~	SVKT 114508-ML	FDA ~	02 ~	IS$$678247058514781 ~	100.00~	6~	6~	6309084
