TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

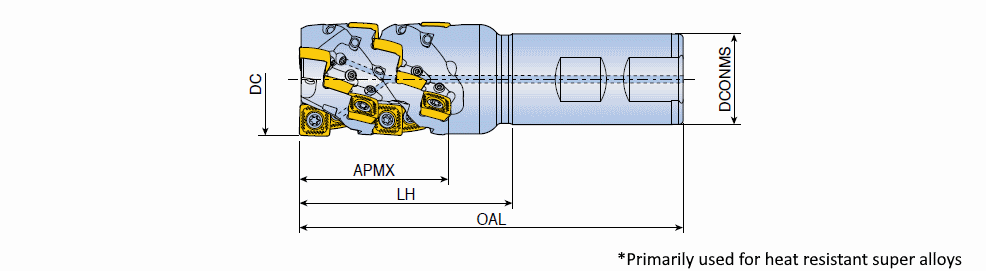

4S-TEF-11V : Extended flute end mills for exotic material machining with unique rigid V-bottom positive square SVK(H)T inserts of four convex cutting edges without mismatch

Designation	Tool sty	DC	NOF	CICT	DCONMS	OAL	LH	APMX			S1	Shank	Rd	e	PD	Insert	KAPR	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
4S-TEF-D32-52-W32-11V-2F	EXTENDED FLUTE ~	32.00	2	12	32.00	135.00	70.0	52.00	O	0.60	11.00~	W ~	0.00~	~	C ~	CVQ-SV11 ~	90.0~	71E01A05D27A8 ~	SVKT 114508-ML	ZYL ~	10 ~	IS$$678247058514781 ~	75.00~	2~	2~	6309079
4S-TEF-D40-52-W32-11V-3F	EXTENDED FLUTE ~	40.00	3	18	32.00	135.00	75.0	52.00	O	0.73	11.00~	W ~	0.00~	~	C ~	CVQ-SV11 ~	90.0~	71E01A05D27A8 ~	SVKT 114508-ML	ZYL ~	10 ~	IS$$678247058514781 ~	75.00~	3~	3~	6309080
4S-TEF-D40-60-W32-11V-3F	EXTENDED FLUTE ~	40.00	3	21	32.00	180.00	85.0	60.00	O	1.00	11.00~	W ~	0.00~	~	C ~	CVQ-SV11 ~	90.0~	71E01A05D27A8 ~	SVKT 114508-ML	ZYL ~	10 ~	IS$$678247058514781 ~	120.00~	3~	3~	6314190
4S-TEF-D50-52-W40-11V-4F	EXTENDED FLUTE ~	50.00	4	24	40.00	145.00	75.0	52.00	O	1.30	11.00~	W ~	0.00~	~	C ~	CVQ-SV11 ~	90.0~	71E01A05D27A8 ~	SVKT 114508-ML	ZYL ~	10 ~	IS$$678247058514781 ~	75.00~	4~	4~	6323402
4S-TEF-D50-77-W40-11V-4F	EXTENDED FLUTE ~	50.00	4	36	40.00	170.00	100.0	77.90	O	1.49	11.00~	W ~	0.00~	~	C ~	CVQ-SV11 ~	90.0~	71E01A05D27A8 ~	SVKT 114508-ML	ZYL ~	10 ~	IS$$678247058514781 ~	100.00~	4~	4~	6323403
