TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

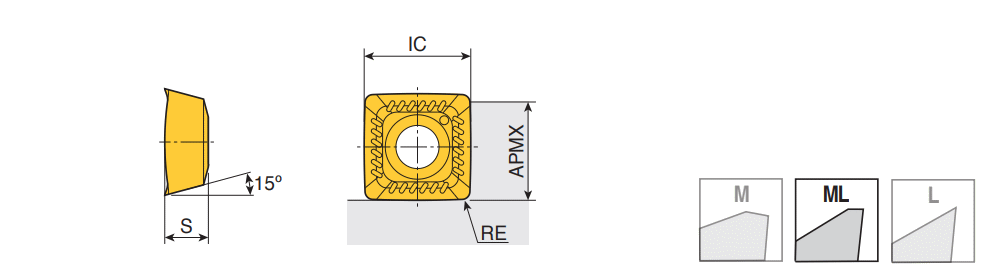

SVKT 11-ML : Positive square inserts with 4 sharp convex cutting edges & secure V-bottom for extended flute cutters on machining of stainless steel

Designation	IC	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SVKT 114508-ML	11.00	4.50	0.80	10.00	11.00~	10.00	10.00	0.150	0.040	M7.5 ~	CVQ-SV11 ~	4~	S ~	71DD68D829217 ~	U40 ~	ML ~	TT3535~	IS$$678247058514781 ~	SVKT 11 ~	0~	6312038		3		TT8080 TT3535 TT9080
SVKT 114516-ML	11.00	4.50	1.60	9.00	11.00~	9.00	9.00	0.150	0.040	M7.5 ~	CVQ-SV11 ~	4~	S ~	71DD68D829217 ~	U40 ~	ML ~	TT3535~	IS$$678247058514781 ~	SVKT 11 ~	0~	6326547		3		TT8080 TT3535 TT9080
