HSK A-EM-E(WHISTLE NOTCH) : DIN 6359 / DIN 1835 form E whistle notch end mill holders with HSK DIN69893 form A taper shanks

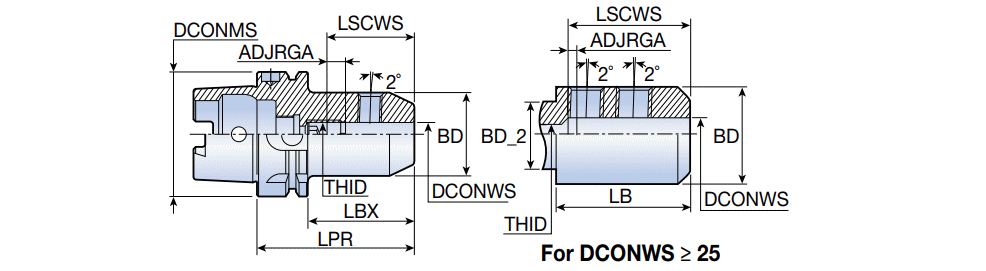

Designation	DCONMS	DCONWS	BD	BD_2	LPR	LBX	LB	ADJRGA	LSCWS	THID		Shank	ClssID	LTA	CCTWS	CCFWS	GICAT
HSK A 63 EM 6X80E	63	6.00	25.00	-	80.00	54.0	-	32.0	40.0	M5	1.10	W ~	71EAD3871D313 ~	0.00~	ZYL ~	13 ~	4652152
HSK A 63 EM 8X80E	63	8.00	28.00	-	80.00	54.0	-	35.0	40.0	M6	0.08	W ~	71EAD3871D313 ~	80.00~	ZYL ~	13 ~	4652153
HSK A 63 EM 12X90E	63	12.00	42.00	-	90.00	64.0	-	44.0	49.0	M10	1.31	W ~	71EAD3871D313 ~	90.00~	ZYL ~	13 ~	4652155
HSK A 63 EM 16X100E	63	16.00	48.00	-	100.00	74.0	-	47.0	52.0	M12	1.61	W ~	71EAD3871D313 ~	100.00~	ZYL ~	13 ~	4652157
HSK A 63 EM 18X100E	63	18.00	50.00	-	100.00	74.0	-	47.0	55.0	M12	1.67	W ~	71EAD3871D313 ~	100.00~	ZYL ~	13 ~	4652158
HSK A 63 EM 20X100E	63	20.00	52.00	-	100.00	74.0	-	49.0	54.0	M16	1.75	W ~	71EAD3871D313 ~	100.00~	ZYL ~	13 ~	4650783
HSK A 63 EM 25X110E	63	25.00	65.00	52.00	110.00	84.0	65.50	54.0	61.0	M16	2.34	W ~	71EAD3871D313 ~	110.00~	ZYL ~	13 ~	4650867
HSK A 63 EM 32X110E	63	32.00	72.00	52.00	110.00	84.0	65.50	58.0	63.0	M20X1.5	2.69	W ~	71EAD3871D313 ~	110.00~	ZYL ~	13 ~	4650868
HSK A 100 EM 8X90E	100	8.00	28.00	-	90.00	61.0	-	35.0	40.0	M6	2.43	W ~	71EAD3871D313 ~	90.00~	ZYL ~	13 ~	4652163
HSK A 100 EM 12X100E	100	12.00	42.00	-	100.00	71.0	-	44.0	54.0	M10	2.90	W ~	71EAD3871D313 ~	100.00~	ZYL ~	13 ~	4652165
HSK A 100 EM 16X100E	100	16.00	48.00	-	100.00	71.0	-	47.0	52.0	M12	3.05	W ~	71EAD3871D313 ~	100.00~	ZYL ~	13 ~	4652167
HSK A 100 EM 18X100E	100	18.00	50.00	-	100.00	71.0	-	47.0	52.0	M12	3.09	W ~	71EAD3871D313 ~	100.00~	ZYL ~	13 ~	4652168
HSK A 100 EM 20X110E	100	20.00	52.00	-	110.00	81.0	-	49.0	54.0	M16	3.29	W ~	71EAD3871D313 ~	110.00~	ZYL ~	13 ~	4650779
HSK A 100 EM 25X120E	100	25.00	65.00	-	120.00	91.0	-	54.0	61.0	M20X1.5	4.20	W ~	71EAD3871D313 ~	120.00~	ZYL ~	13 ~	4650781
HSK A 100 EM 32X120E	100	32.00	72.00	-	120.00	91.0	-	58.0	63.0	M20X1.5	4.57	W ~	71EAD3871D313 ~	120.00~	ZYL ~	13 ~	4650869
