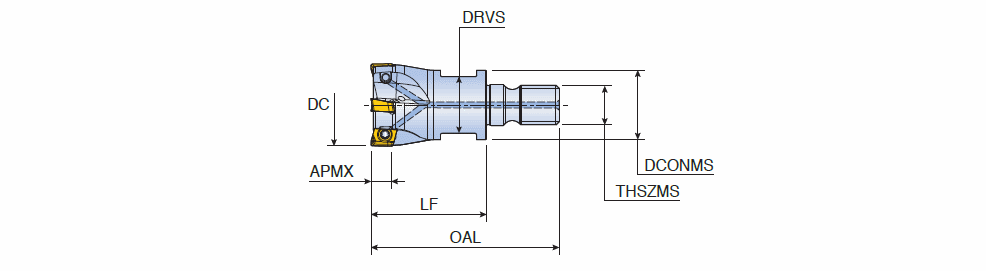

2P-TE90-M-07 : 90° Modular end mills with T-FLEXTEC adaptation & high positive helical cutting edges of 2PKT inserts

Designation	Tool sty	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	DRVS	PD	Insert			S1	Rd	ClssID	MIID	KAPR	CCTMS	CCFMS	FF/RN	IIC	LTA	TQ_3	ZEFF	ZEFP	GICAT
2P-TE90-216-M08-07	MODULAR ~	16.00	2	13.00	23.00	40.50	M08	6.00	10.0	RC ~	CMP-2P07 ~	0.03	O ~	7.00~	8.60~	71E01A05D27A8 ~	2PKT 070404R-M	90.0~	SAI ~	02 ~	FF ~	IS$$775857599712948 ~	23.00~	0~	2~	2~	6307529
2P-TE90-320-M10-07	MODULAR ~	20.00	3	18.00	30.00	50.00	M10	6.00	15.0	RF ~	CMP-2P07 ~	0.05	O ~	7.00~	6.20~	71E01A05D27A8 ~	2PKT 070404R-M	90.0~	SAI ~	02 ~	FF ~	IS$$775857599712948 ~	30.00~	0~	3~	3~	6307530
2P-TE90-425-M12-07	MODULAR ~	25.00	4	21.00	35.00	57.00	M12	6.00	17.0	RF ~	CMP-2P07 ~	0.10	O ~	7.00~	4.30~	71E01A05D27A8 ~	2PKT 070404R-M	90.0~	SAI ~	02 ~	FF ~	IS$$775857599712948 ~	35.00~	0~	4~	4~	6307531
2P-TE90-532-M16-07	MODULAR ~	32.00	5	29.00	43.00	68.00	M16	6.00	25.0	F ~	CMP-2P07 ~	0.20	O ~	7.00~	2.90~	71E01A05D27A8 ~	2PKT 070404R-M	90.0~	SAI ~	02 ~	FF ~	IS$$775857599712948 ~	43.00~	0~	5~	5~	6307532
2P-TE90-640-M16-07	MODULAR ~	40.00	6	29.00	43.00	68.00	M16	6.00	25.0	XF ~	CMP-2P07 ~	0.28	O ~	7.00~	2.20~	71E01A05D27A8 ~	2PKT 070404R-M	90.0~	SAI ~	02 ~	FF ~	IS$$775857599712948 ~	43.00~	0~	6~	6~	6307533

APMX and OAL in the table are the values when using the 08R insert
