TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

2P-TF90-R-07 : 90° Face mills with 2PKT inserts of high positive helical cutting edges

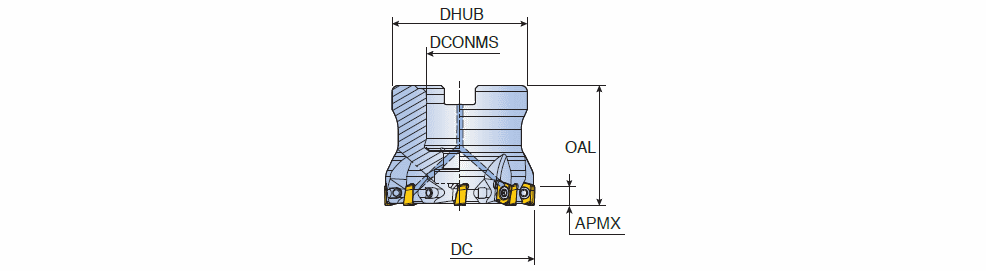

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX		Arbor		Mtg. Ref	S1	D3	Rd	KAPR	R/L	PD	Insert	ClssID	MIID	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	GICAT
2P-TF90-540-16R-07	FACE MILL ~	40.00	5	16.00	38.00	40.00	6.00	O	A	0.20	SH M8x30 ~	7.00~	0.00~	2.20~	90.0~	~	F ~	CMP-2P07 ~	71E01A05D27A8 ~	2PKT 070404R-M	FDA ~	02 ~	FF ~	IS$$775857599712948 ~	40.00~	5~	5~	6307520
2P-TF90-763-22R-07	FACE MILL ~	63.00	7	22.00	47.00	40.00	6.00	O	A	0.50	SH M10x30 ~	7.00~	0.00~	1.20~	90.0~	~	RF ~	CMP-2P07 ~	71E01A05D27A8 ~	2PKT 070404R-M	FDA ~	02 ~	FF ~	IS$$775857599712948 ~	40.00~	7~	7~	6307521
2P-TF90-880-27R-07	FACE MILL ~	80.00	8	27.00	58.00	50.00	6.00	O	A	1.00	SH M12x35 ~	7.00~	0.00~	0.90~	90.0~	~	RF ~	CMP-2P07 ~	71E01A05D27A8 ~	2PKT 070404R-M	FDA ~	02 ~	FF ~	IS$$775857599712948 ~	50.00~	8~	8~	6307522

APMX and OAL in the table are the values when using the 08R insert
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
