TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

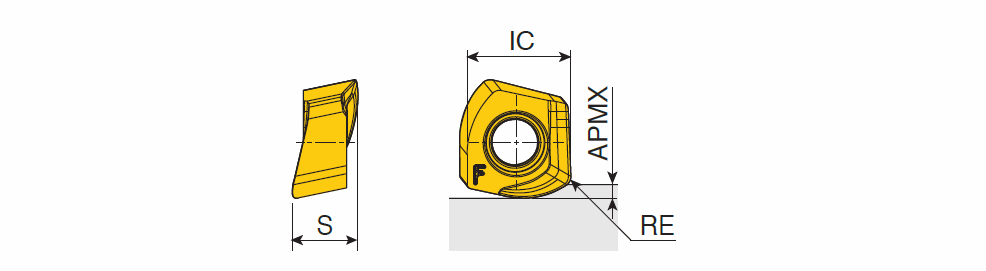

2PKT 07-HF : Positive double-sided inserts with two helical cutting edges & strong double-dovetail design for High feed machining

Designation	IC	S	APMX	RE	fz (max)	fz (min)	ap (min)	ap (max)	S1	Insert	SF	CEDC	SC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
2PKT 0704R-HF	6.78	4.06	0.80	0.85	1.200	0.600	0.30	0.80	7.00~	CMP-2P07 ~	M8 ~	2~	B ~	U60 ~	HF ~	TT9080~	IS$$775857599712948 ~	2PKT 07-HF ~	0~	6304614		1		TT9080

For using 2PKT 07-HF on current tools of 2PKT 07, modifications are needed.
