TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

CVHT 0502PNR-L : Unique high positive ground inserts with very sharp two cutting edges and rigid V shape for light machining

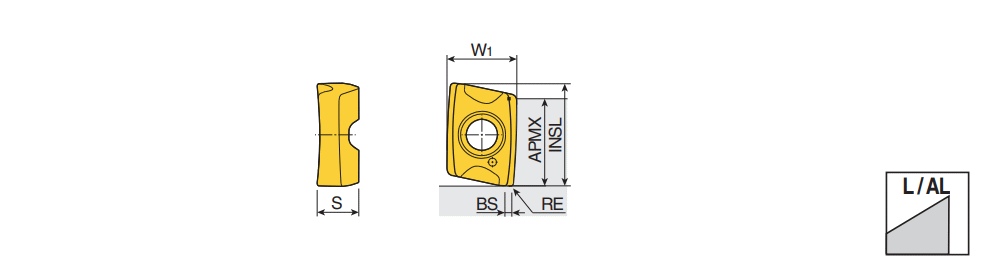

Designation	INSL	W1	S	APMX	BS	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CVHT 0502PNR-L	6.30	4.10	2.60	5.00	0.30	0.20	5.00~	0.50	4.00	0.070	0.030	M6 ~	MILS-CV05 ~	2~	C ~	71DDA089C8D1E ~	G20 ~	L ~	TT5525~	IS$$1208898975928941 ~	CVK(H)T 05 ~	0~	6327173		3		TT8080 TT9080 TT5525
