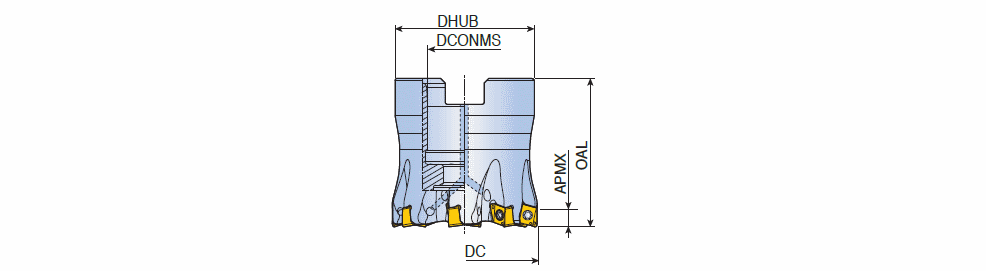

4N TF90-R-04 : 90° Face mills with unique four high positive helical cutting edges of double-sided 4NKT 04 inserts & high ramping capability


 COOLANT
  DesignationTool sty DC CICT DCONMS DHUB OAL APMX  Arbor  Mtg. Ref S1 D3 Rd KAPR R/L PD Insert Pocket ClssID MIID LTA CCTMS CCFMS FF/RN IIC ZEFF ZEFP GICATGIREMgiicGICODE
  4N TF90-832-16R-04 FACE MILL ~32.00816.0030.0032.003.50O ~A 0.10SH M8x25 4.00~0.00~1.70~90.0~ ~XF ~C4M-4N04 ~4N04-HF ~71E01A05B627B ~4NKT 040204R-M 32.00~FDA ~02 ~FF ~IS$$1188856158617950 ~8~8~6187391 0
  4N TF90-1040-16R-04 FACE MILL ~40.001016.0038.0040.003.50O ~A 0.20SH M8x25 4.00~0.00~1.30~90.0~ ~XF ~C4M-4N04 ~4N04-HF ~71E01A05B627B ~4NKT 040204R-M 40.00~FDA ~02 ~FF ~IS$$1188856158617950 ~10~10~6187392 0
Cutter body for '4NKT 040212R-HF' insert should be modified with body corner radius 1.2 mm
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
