4N TE90-M-04 : 90° Modular end mills with T-FLEXTEC adaptation & unique four high positive helical cutting edges of double-sided 4NKT 04 inserts & high ramping capability

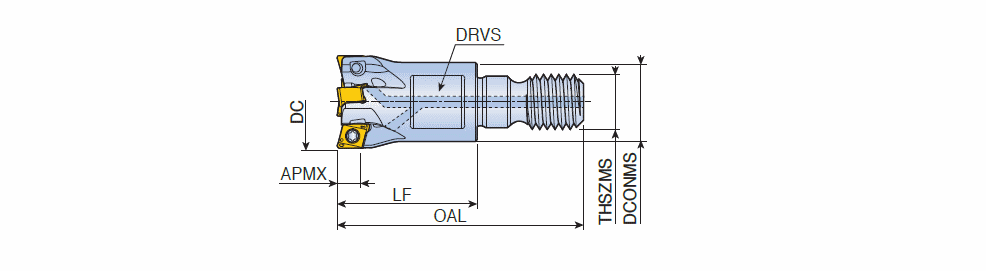

Designation	Tool sty	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	DRVS		PD		S1	Rd	Insert	Pocket	ClssID	MIID	KAPR	LTA	CCTMS	CCFMS	FF/RN	IIC	TQ_3	ZEFF	ZEFP	GICAT
4N TE90-210-M06-04	MODULAR ~	10.00	2	9.70	17.00	31.50	M06	3.50	8.0	O ~	F ~	0.01	4.00~	4.20~	C4M-4N04 ~	4N04-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	17.00~	SAI ~	02 ~	FF ~	IS$$1188856158617950 ~	0~	2~	2~	6187384
4N TE90-211-M06-04	MODULAR ~	11.00	2	9.70	17.00	31.50	M06	3.50	8.0	O ~	F ~	0.01	4.00~	4.80~	C4M-4N04 ~	4N04-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	17.00~	SAI ~	02 ~	FF ~	IS$$1188856158617950 ~	0~	2~	2~	6194580
4N TE90-312-M06-04	MODULAR ~	12.00	3	11.00	17.00	31.50	M06	3.50	8.0	O ~	F ~	0.01	4.00~	4.50~	C4M-4N04 ~	4N04-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	17.00~	SAI ~	02 ~	FF ~	IS$$1188856158617950 ~	0~	3~	3~	6187385
4N TE90-313-M06-04	MODULAR ~	13.00	3	11.00	17.00	31.50	M06	3.50	8.0	O ~	F ~	0.01	4.00~	4.70~	C4M-4N04 ~	4N04-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	17.00~	SAI ~	02 ~	FF ~	IS$$1188856158617950 ~	0~	3~	3~	6194579
4N TE90-416-M08-04	MODULAR ~	16.00	4	13.00	23.00	40.50	M08	3.50	10.0	O ~	F ~	0.03	4.00~	4.10~	C4M-4N04 ~	4N04-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	23.00~	SAI ~	02 ~	FF ~	IS$$1188856158617950 ~	0~	4~	4~	6187386
4N TE90-417-M08-04	MODULAR ~	17.00	4	13.00	23.00	40.50	M08	3.50	10.0	O ~	F ~	0.03	4.00~	0.00~	C4M-4N04 ~	4N04-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	0.00~	~	~	FF ~	IS$$1188856158617950 ~	0~	4~	4~	6245250
4N TE90-520-M10-04	MODULAR ~	20.00	5	18.00	23.00	43.00	M10	3.50	15.0	O ~	XF ~	0.06	4.00~	3.10~	C4M-4N04 ~	4N04-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	23.00~	SAI ~	02 ~	FF ~	IS$$1188856158617950 ~	0~	5~	5~	6187387
4N TE90-725-M12-04	MODULAR ~	25.00	7	21.00	27.00	49.00	M12	3.50	17.0	O ~	XF ~	0.10	4.00~	2.30~	C4M-4N04 ~	4N04-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	27.00~	SAI ~	02 ~	FF ~	IS$$1188856158617950 ~	0~	7~	7~	6187388

Cutter body for '4NKT 040212R-HF' insert should be modified with body corner radius 1.2 mm
Matched with T-FLEXTEC holder
