4N TE90-M-09 : 90° Modular end mills with T-FLEXTEC adaptation & unique four high positive helical cutting edges of double-sided 4NK(H)T 09 inserts & high ramping capability

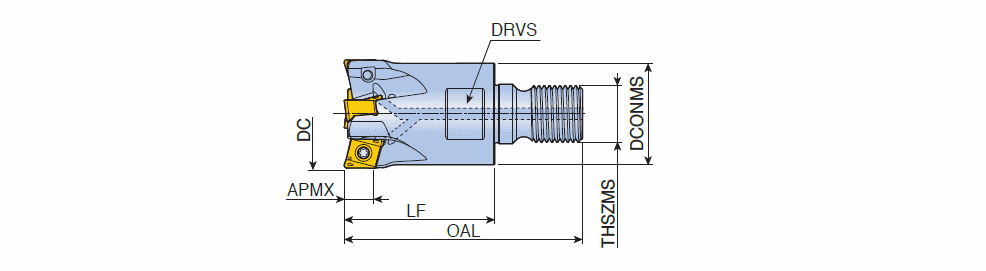

Designation	Tool sty	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	DRVS		PD		S1	Rd	Insert	Pocket	ClssID	MIID	KAPR	CCTMS	CCFMS	FF/RN	IIC	LTA	TQ_3	ZEFF	ZEFP	GICAT
4N TE90-220-M10-09	MODULAR ~	20.00	2	18.00	30.00	50.00	M10	8.00	15.0	O ~	RC ~	90.00	9.00~	3.70~	C4M-4N09 ~	4N09-HF ~	71E01A05D27A8 ~	4NKT 090408R-M	90.0~	SAI ~	02 ~	FF ~	IS$$992347946472862 ~	30.00~	0~	2~	2~	6176007
4N TE90-325-M12-09	MODULAR ~	25.00	3	21.00	35.00	57.00	M12	8.00	17.0	O ~	RC ~	90.00	9.00~	4.90~	C4M-4N09 ~	4N09-HF ~	71E01A05D27A8 ~	4NKT 090408R-M	90.0~	SAI ~	02 ~	FF ~	IS$$992347946472862 ~	35.00~	0~	3~	3~	6176008
4N TE90-432-M16-09	MODULAR ~	32.00	4	29.00	43.00	68.00	M16	8.00	25.0	O ~	RF ~	90.00	9.00~	4.90~	C4M-4N09 ~	4N09-HF ~	71E01A05D27A8 ~	4NKT 090408R-M	90.0~	SAI ~	02 ~	FF ~	IS$$992347946472862 ~	43.00~	0~	4~	4~	6176009
4N TE90-540-M16-09	MODULAR ~	40.00	5	29.00	43.00	68.00	M16	8.00	25.0	O ~	F ~	90.00	9.00~	3.60~	C4M-4N09 ~	4N09-HF ~	71E01A05D27A8 ~	4NKT 090408R-M	90.0~	SAI ~	02 ~	FF ~	IS$$992347946472862 ~	43.00~	0~	5~	5~	6176010

Cutter body for '4NKT 090432R-HF' insert should be modified with body corner radius 3.2 mm
Matched with T-FLEXTEC holder
