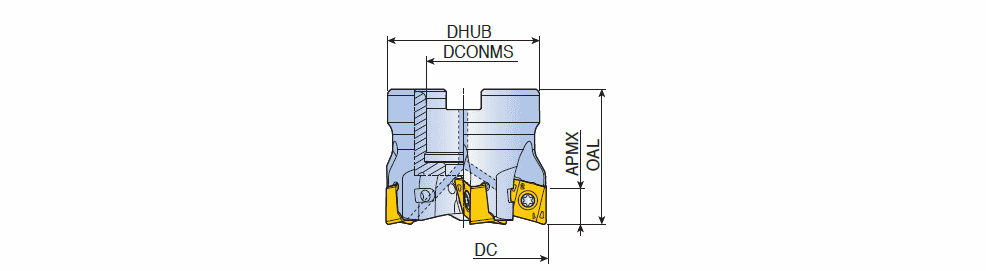

4N TF90-R-11 : 90° Face mills with unique four high positive helical cutting edges of double-sided 4NKT 11 inserts

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX		Arbor		Mtg. Ref	S1	D3	Rd	KAPR	R/L	PD	Insert	Pocket	ClssID	MIID	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	GICAT
4N TF90-440-16R-11	FACE MILL ~	40.00	4	16.00	38.00	40.00	10.50	O ~	A	0.20	SH M8x30	11.00~	0.00~	5.00~	90.0~	~	RF ~	C4M-4N11 ~	4N11-HF ~	71E01A05B627B ~	4NKT 110608R-M	FDA ~	02 ~	FF ~	IS$$688137628573336 ~	40.00~	4~	4~	6187366
4N TF90-450-22R-11	FACE MILL ~	50.00	4	22.00	45.00	40.00	10.50	O ~	A	0.30	LH M10x25	11.00~	0.00~	5.00~	90.0~	~	RC ~	C4M-4N11 ~	4N11-HF ~	71E01A05B627B ~	4NKT 110608R-M	FDA ~	02 ~	FF ~	IS$$688137628573336 ~	40.00~	4~	4~	6187367
4N TF90-550-22R-11	FACE MILL ~	50.00	5	22.00	45.00	40.00	10.50	O ~	A	0.30	LH M10x25	11.00~	0.00~	5.00~	90.0~	~	RF ~	C4M-4N11 ~	4N11-HF ~	71E01A05B627B ~	4NKT 110608R-M	FDA ~	02 ~	FF ~	IS$$688137628573336 ~	40.00~	5~	5~	6178136
4N TF90-463-22R-11	FACE MILL ~	63.00	4	22.00	47.00	40.00	10.50	O ~	A	0.60	LH M10x25	11.00~	0.00~	2.70~	90.0~	~	RC ~	C4M-4N11 ~	4N11-HF ~	71E01A05B627B ~	4NKT 110608R-M	FDA ~	02 ~	FF ~	IS$$688137628573336 ~	40.00~	4~	4~	6187368
4N TF90-663-22R-11	FACE MILL ~	63.00	6	22.00	47.00	40.00	10.50	O ~	A	0.50	LH M10x25	11.00~	0.00~	2.70~	90.0~	~	RF ~	C4M-4N11 ~	4N11-HF ~	71E01A05B627B ~	4NKT 110608R-M	FDA ~	02 ~	FF ~	IS$$688137628573336 ~	40.00~	6~	6~	6187369
4N TF90-480-25.4R-11	FACE MILL ~	80.00	4	25.40	70.00	50.00	10.50	O ~	A	1.28	SH M12x35	11.00~	0.00~	0.00~	90.0~	~	C ~	C4M-4N11 ~	4N11-HF ~	71E01A05B627B ~	4NKT 110608R-M	FDA ~	02 ~	FF ~	IS$$688137628573336 ~	50.00~	4~	4~	6210968
4N TF90-480-27R-11	FACE MILL ~	80.00	4	27.00	58.00	50.00	10.50	O ~	A	1.10	SH M12x35	11.00~	0.00~	2.00~	90.0~	~	C ~	C4M-4N11 ~	4N11-HF ~	71E01A05B627B ~	4NKT 110608R-M	FDA ~	02 ~	FF ~	IS$$688137628573336 ~	50.00~	4~	4~	6187370
4N TF90-680-27R-11	FACE MILL ~	80.00	6	27.00	58.00	50.00	10.50	O ~	A	1.00	SH M12x35	11.00~	0.00~	2.00~	90.0~	~	RC ~	C4M-4N11 ~	4N11-HF ~	71E01A05B627B ~	4NKT 110608R-M	FDA ~	02 ~	FF ~	IS$$688137628573336 ~	50.00~	6~	6~	6220130
4N TF90-880-27R-11	FACE MILL ~	80.00	8	27.00	58.00	50.00	10.50	O ~	A	1.00	SH M12x35	11.00~	0.00~	2.00~	90.0~	~	RF ~	C4M-4N11 ~	4N11-HF ~	71E01A05B627B ~	4NKT 110608R-M	FDA ~	02 ~	FF ~	IS$$688137628573336 ~	50.00~	8~	8~	6178137
4N TF90-9100-32R-11	FACE MILL ~	100.00	9	32.00	85.00	50.00	10.50	O ~	A	1.90	SH M16X35	11.00~	0.00~	1.50~	90.0~	~	RF ~	C4M-4N11 ~	4N11-HF ~	71E01A05B627B ~	4NKT 110608R-M	FDA ~	02 ~	FF ~	IS$$688137628573336 ~	49.90~	9~	9~	6187373

Cutter body for '4NKT 110640R-HF' insert should be modified with body corner radius 4.0 mm
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
