4NKT 14-PNR-M : Double-sided inserts with four high positive helical cutting edges & wiper for 90° shoulders & better surface finish of general machining

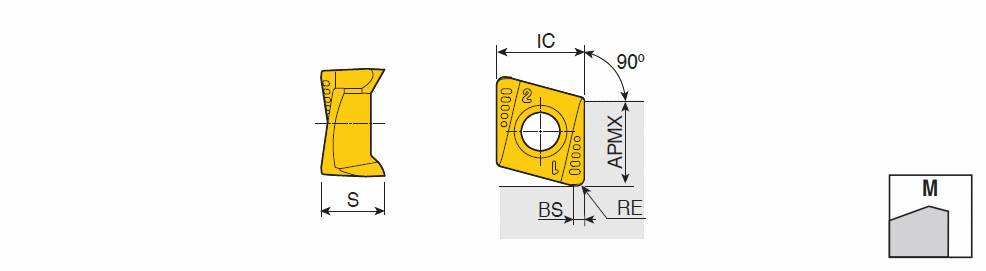

Designation	IC	S	APMX	BS	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
4NKT 140708 PNR-M	14.00	9.42	13.50	1.25	0.80	14.00~	4.00	12.00	0.180	0.090	M8 ~	C4M-4N14 ~	8~	~	71DD68D301C30 ~	U60 ~	M ~	8525B ~	IS$$573517796803679 ~	4NKT 14 PNR ~	0~	6321650		3		TT8080 TT8525B TT9080
