4NHT 09-ML : Double-sided ground inserts with high positive four helical cutting edges & wiper flat for excellent surface finish, 90° shoulders, soft cutting and minimized built-up-edges of stainless steel & super alloys

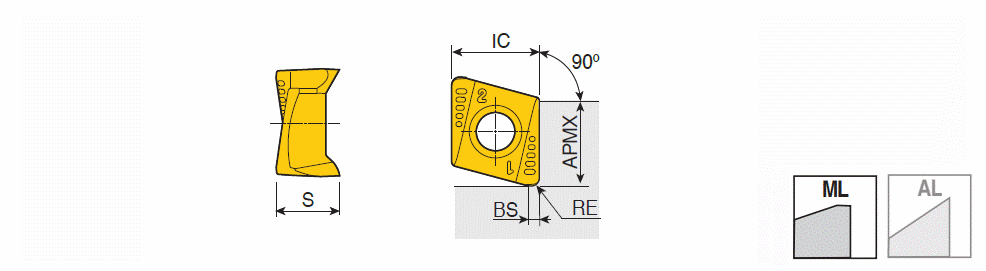

Designation	RE	S	APMX	BS	IC	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
4NHT 090404R-ML	0.40	6.30	8.00	1.20	8.60	9.00~	2.50	7.00	0.100	0.040	M6 ~	C4M-4N09 ~	4~	~	71DD68D301C30 ~	G40 ~	ML ~	TT9080~	IS$$992347946472862 ~	4NHT 09 ~	0~	6169714		1		TT9080
4NHT 090408R-ML	0.80	6.20	8.00	0.80	8.60	9.00~	2.50	7.00	0.100	0.040	M6 ~	C4M-4N09 ~	4~	~	71DD68D301C30 ~	G40 ~	ML ~	TT8080~	IS$$992347946472862 ~	4NHT 09 ~	0~	6306587		2		TT8080 TT9080
