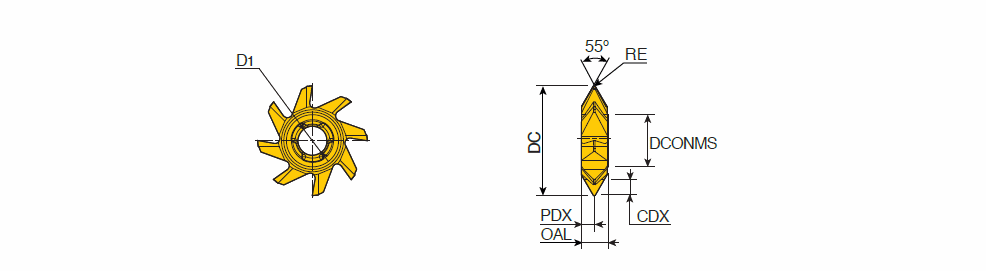

TR-T-W55 (Head) : Interchangeable solid carbide threading heads with 55° Partial profile


  DesignationTool sty S1 TPIN TPIX DC DMIN PDX RE D1 CDX OAL ZEFF ZEFP DCONMS NOF  ClssID CCTMS CCFMS GRDMFG ISYC LPR LTA GICATGIREMgiicGICODEGrade & Vc     Click on grade for cutting speed value
  TR13-T-24.7-W55-3T HEAD TYPE ~1.00~5.008.0024.7036.002.20.507.503.507.706~613.006~71EF07E037025 ~SPI ~01 ~TT5525~303-09 ~7.70~7.70~6324386 1 TT5525
  TR15-T-31.7-W55-4T HEAD TYPE ~2.00~4.006.0031.7046.003.70.508.404.707.708~815.008~71EF07E037025 ~SPI ~01 ~TT5525~303-09 ~7.70~7.70~6324387 1 TT5525
  TR17-T-39.7-W55-3T HEAD TYPE ~3.00~3.004.0039.7057.004.50.809.806.209.5010~1017.0010~71EF07E037025 ~SPI ~01 ~TT5525~303-09 ~9.50~9.50~6324388 1 TT5525
TPI: Threads per inch
ZEFP: Peripheral effective cutting edge count
