TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

8D-TE90-M-07 : Modular 90° end mills with T-FLEXTEC adaptation & double sided square inserts SQ 07 of 8 cutting edges

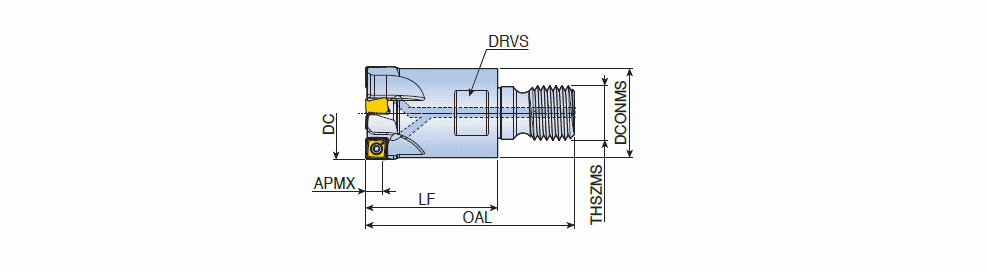

Designation	Tool sty	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	DRVS		PD		S1	Rd	Insert	MIID	ClssID	KAPR	CCTMS	CCFMS	IIC	LTA	TQ_3	ZEFF	ZEFP	GICAT
8D-TE90-216-M08-07	MODULAR ~	16.00	2	14.00	23.00	40.50	M08	5.00	10.0	O ~	RC ~	0.03~	7.00~	0.00~	C8M-SQ07 ~	SQKU 070308 PNR-M	71E01A05D27A8 ~	90.0~	SAI ~	02 ~	IS$$1094233105811853 ~	23.00~	0~	2~	2~	6322404
8D-TE90-320-M10-07	MODULAR ~	20.00	3	18.00	30.00	50.00	M10	5.00	15.0	O ~	RF ~	0.06~	7.00~	0.00~	C8M-SQ07 ~	SQKU 070308 PNR-M	71E01A05D27A8 ~	90.0~	SAI ~	02 ~	IS$$1094233105811853 ~	30.00~	0~	3~	3~	6322405
8D-TE90-325-M12-07	MODULAR ~	25.00	3	22.00	35.00	57.00	M12	5.00	17.0	O ~	RC ~	0.10~	7.00~	0.00~	C8M-SQ07 ~	SQKU 070308 PNR-M	71E01A05D27A8 ~	90.0~	SAI ~	02 ~	IS$$1094233105811853 ~	35.00~	0~	3~	3~	6322406
8D-TE90-432-M16-07	MODULAR ~	32.00	4	29.00	43.00	68.00	M16	5.00	25.0	O ~	RF ~	0.23~	7.00~	0.00~	C8M-SQ07 ~	SQKU 070308 PNR-M	71E01A05D27A8 ~	90.0~	SAI ~	02 ~	IS$$1094233105811853 ~	43.00~	0~	4~	4~	6322407
8D-TE90-540-M16-07	MODULAR ~	40.00	5	29.00	43.00	68.00	M16	5.00	25.0	O ~	F ~	0.27~	7.00~	0.00~	C8M-SQ07 ~	SQKU 070308 PNR-M	71E01A05D27A8 ~	90.0~	SAI ~	02 ~	IS$$1094233105811853 ~	43.00~	0~	5~	5~	6322408

Matched with T-FLEXTEC holder
