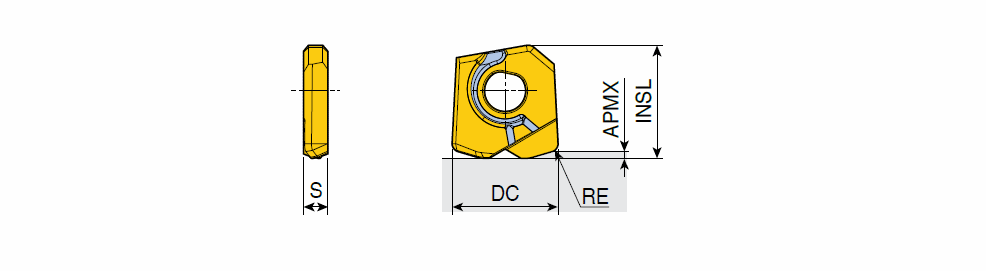

HFN 08-M : Nano High Feed milling inserts of maximum depth of cut 0.5 mm for miniature components

Designation	INSL	DC	S	APMX	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	Pocket	ESP	ClssID	KAPR	CB	GRDMFG	IIC	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
HFN 080-M	8.38	8.00	1.80	0.50	0.60	8.00~	0.20	0.30	0.500	0.300	M8 ~	NR-HFN08 ~	2~	~	HFN 08 ~	G60 ~	71DDA089C8D1E ~	20.0~	M ~	TT5515~	IS$$159674972299110 ~	0~	6312521		1		TT5515
